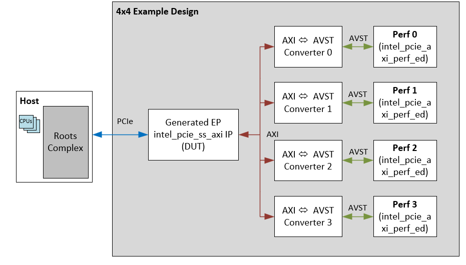

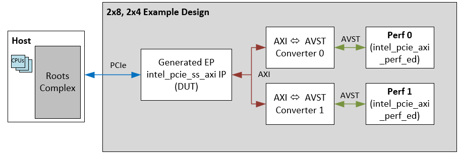

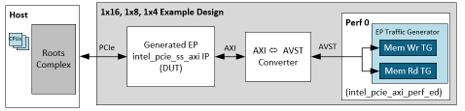

3.4.3. Functional Description for the Performance Design Example

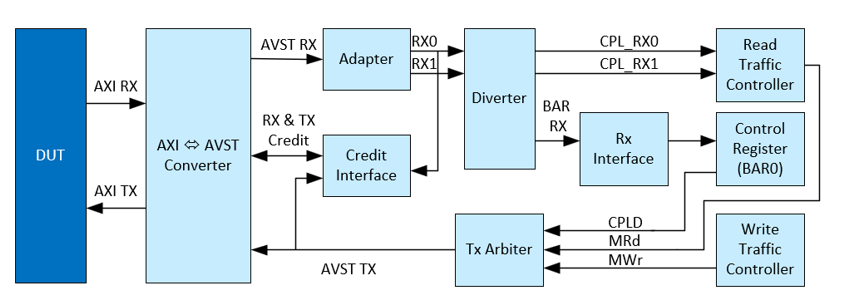

The Performance design example performs memory transfers from the AXI Streaming Intel FPGA IP for PCI Express to the host system memory. You can configure the Endpoint Traffic Generator design example to send:
- Memory Write-only TLPs
- Memory Read-only TLPs
- Both Memory Write and Memory Read TLPs
There is a traffic counter implemented in the FPGA Application logic to measure the amount of traffic that is being generated. To make a traffic measurement, the software application running at the host side issues a memory read TLP, acquires the counter value, and prints the traffic generated on the system terminal. The software application performs a memory write to the control register within the Application logic to start and stop the traffic.
Port Mode | Link Width | Topology | Link Speed | HIP Data Width (Bits) | Application Data Width (Bits) | Compact/HIP Native Mode | Design Example Support |
---|---|---|---|---|---|---|---|
Endpoint | x16 | 1x16 | Gen4 | 512 (2 x 256) | 1024 (4 x 256) | Compact | SCTH |
512 (2 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
Gen3 | 512 (2 x 256) | 1024 (4 x 256) | Compact | SCTH | |||
512 (2 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
x8 | 2x8 1x8 |
Gen4 | 256 (1 x 256) | 1024 (4 x 256) | Compact | SCTH | |
256 (1 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
Gen3 | 256 (1 x 256) | 1024 (4 x 256) | Compact | SCTH | |||
256 (1 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
x4 | 4x4 | Gen4 | 128 (1 x 128) | 256 (1 x 256) | Compact | CT | |
128 (1 x 128) | 128 (1 x 128) | Compact | CT | ||||
Gen3 | 128 (1 x 128) | 256 (1 x 256) | Compact | CT | |||
128 (1 x 128) | 128 (1 x 128) | Compact | CT | ||||
2x4 1x4 |
Gen4 | 128 (1 x 128) | 256 (1 x 256) | Compact | CTH | ||
128 (1 x 128) | 128 (1 x 128) | Compact | CTH | ||||
Gen3 | 128 (1 x 128) | 256 (1 x 256) | Compact | CTH | |||
128 (1 x 128) | 128 (1 x 128) | Compact | CTH | ||||
Root Port | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
TL Bypass | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
Note: For the P-Tile AXI Streaming Performance design example, only VCS, VCSMX, Questasim, and Modelsim are supported for simulation.
Port Mode | Link Width | Topology | Link Speed | HIP Data Width (Bits) | Application Data Width (Bits) | Compact/HIP Native Mode | Design Example Support |
---|---|---|---|---|---|---|---|
Endpoint | x16 | 1x16 | Gen4 | 512 (2 x 256) | 1024 (4 x 256) | Compact | SCTH |
512 (2 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
Gen3 | 512 (2 x 256) | 1024 (4 x 256) | Compact | SCTH | |||
512 (2 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
x8 | 2x8 1x8 |
Gen4 | 256 (1 x 256) | 1024 (4 x 256) | Compact | SCTH | |
256 (1 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
Gen3 | 256 (1 x 256) | 1024 (4 x 256) | Compact | SCTH | |||
256 (1 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
x4 | 4x4 | Gen4 | 128 (1 x 128) | 256 (1 x 256) | Compact | CT | |
128 (1 x 128) | 128 (1 x 128) | Compact | CT | ||||
Gen3 | 128 (1 x 128) | 256 (1 x 256) | Compact | CT | |||
128 (1 x 128) | 128 (1 x 128) | Compact | CT | ||||
2x4 1x4 |
Gen4 | 128 (1 x 128) | 256 (1 x 256) | Compact | CTH | ||
128 (1 x 128) | 128 (1 x 128) | Compact | CTH | ||||
Gen3 | 128 (1 x 128) | 256 (1 x 256) | Compact | CTH | |||
128 (1 x 128) | 128 (1 x 128) | Compact | CTH | ||||
Root Port | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
TL Bypass | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
PIPE Direct (PIPE-D) | 1x16 | Gen4 | 512 (2 x 256) | 512 (2 x 256) | Compact | S | |
PIPE Direct (PIPE-D) | 2x8 | Gen4 | 512 (2 x 256) | 512 (2 x 256) | Compact | S | |
PIPE Direct (PIPE-D) | 1x8 | Gen4 | 256 (1 x 256) | 256 (1 x 256) | Compact | S |
Note: For the F-Tile AXI Streaming Performance design example, only VCS, VCSMX, Questasim, and Modelsim are supported for simulation.
Port Mode | Link Width | Topology | Link Speed | HIP Data Width (Bits) | Application Data Width (Bits) | Compact/HIP Native Mode | Design Example Support |
---|---|---|---|---|---|---|---|
Endpoint | x16 | 1x16 | Gen5 | 1024 (4 x 256) | 1024 (4 x 256) | HIP Native | SCTH |
1024 (4 x 256) | 1024 (4 x 256) | Compact | SCTH | ||||
1024 (4 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
1024 (4 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
1024 (4 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
1024 (4 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
1024 (4 x 256) | 256 ( 1 x 256) | Compact | SCTH | ||||
Gen4 | 1024 (4 x 256) | 1024 (4 x 256) | HIP Native | SCTH | |||
512 (2 x 256) | 1024 (4 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | HIP Native | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
Gen3 | 1024 (4 x 256) | 1024 (4 x 256) | HIP Native | SCTH | |||
512 (2 x 256) | 1024 (4 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | HIP Native | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
x8 | 2x8 1x8 |
Gen5 | 512 (2 x 256) | 1024 (4 x 256) | Compact | SCTH | |
512 (2 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | HIP Native | SCTH | ||||
512 (2 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
512 (2 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
512 (2 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
Gen4 | 512 (2 x 256) | 512 (2 x 256) | HIP Native | SCTH | |||
256 (1 x 256) | 1024 (4 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | HIP Native | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
Gen3 | 512 (2 x 256) | 512 (2 x 256) | HIP Native | SCTH | |||
256 (1 x 256) | 1024 (4 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (2 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 1024 (1 x 1024) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (2 x 256) | Compact | SCTH | ||||
256 (1 x 256) | 512 (1 x 512) | Compact | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | HIP Native | SCTH | ||||
256 (1 x 256) | 256 (1 x 256) | Compact | SCTH | ||||
x4 | 4x4 | Gen5 | 256 (2 x 128) | 1024 (4 x 256) | Compact | CT | |
256 (2 x 128) | 1024 (2 x 512) | Compact | CT | ||||
256 (2 x 128) | 1024 (1 x 1024) | Compact | CT | ||||
256 (2 x 128) | 512 (2 x 256) | Compact | CT | ||||
256 (2 x 128) | 512 (1 x 512) | Compact | CT | ||||
256 (2 x 128) | 256 (2 x 128) | HIP Native | CTH | ||||
256 (2 x 128) | 256 (2 x 128) | Compact | CT | ||||
256 (2 x 128) | 256 (1 x 256) | Compact | CT | ||||
Gen4 | 256 (2 x 128) | 256 (2 x 128) | HIP Native | CTH | |||
128 (1 x 128) | 256 (1 x 256) | Compact | CT | ||||
128 (1 x 128) | 128 (1 x 128) | HIP Native | CTH | ||||
128 (1 x 128) | 128 (1 x 128) | Compact | CT | ||||
Gen3 | 256 (2 x 128) | 256 (2 x 128) | HIP Native | CTH | |||
128 (1 x 128) | 256 (1 x 256) | Compact | CT | ||||
128 (1 x 128) | 128 (1 x 128) | HIP Native | CTH | ||||
128 (1 x 128) | 128 (1 x 128) | Compact | CT | ||||
2x4 1x4 |
Gen4 | 256 (2 x 128) | 256 (2 x 128) | HIP Native (1x4) | CTH | ||
128 (1 x 128) | 256 (1 x 256) | Compact | CTH | ||||
128 (1 x 128) | 128 (1 x 128) | HIP Native | CTH | ||||
128 (1 x 128) | 128 (1 x 128) | Compact | CTH | ||||
Gen3 | 256 (2 x 128) | 256 (2 x 128) | HIP Native (1x4) | CTH | |||
128 (1 x 128) | 256 (1 x 256) | Compact | CTH | ||||
128 (1 x 128) | 128 (1 x 128) | HIP Native | CTH | ||||
128 (1 x 128) | 128 (1 x 128) | Compact | CTH | ||||
Root Port | N/A | N/A | N/A | N/A | N/A | N/A | |
TL Bypass | N/A | N/A | N/A | N/A | N/A | N/A | |
PIPE Direct (PIPE-D) | 1x16 | Gen5 | 1024 (4 x 256) | 1024 (4 x 256) | HIP Native / Compact | S | |
PIPE Direct (PIPE-D) | 2x8 | Gen5 | 512 (2 x 256) | 512 (2 x 256) | HIP Native / Compact | S |
Note: For the R-Tile AXI Streaming Performance design example in Endpoint mode, only VCS, and VCSMX are supported for simulation.
Note: The R-Tile AXI Streaming Performance design example in PIPE Direct mode is only supported by VCS.
Figure 15. Performance AXI Streaming 1x16, 1x8, 1x4 Design Example Block Diagram
Figure 16. Performance AXI Streaming 2x8, 2x4 Design Example Block Diagram
Figure 17. Performance AXI Streaming 4x4 Design Example Block Diagram
Figure 18. Gen5 Performance Design Example Block Diagram
