12.5.3. Launching the EMIF Debug Toolkit

Before launching the EMIF Debug Toolkit, ensure that you have configured your device with a programming file that has the EMIF Debug Toolkit enabled.

To launch the debug toolkit, follow these steps:

  1. In the Quartus® Prime software, open the System Console by clicking Tools > System Debugging Tools > System Console.
  2. In the System Console, load the SRAM Object File (.sof) with which you have programmed the board. (Refer to the Prerequisites for Using the EMIF Debug Toolkit topic.)
  3. Select the correct instance that you want to debug.

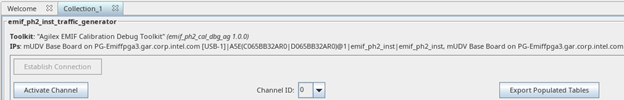

  4. Select Agilex 7 EMIF Calibration Debug Toolkit from the Details section. Click Open Toolkit to open the main view of the toolkit.
  5. Click Establish Connection to initialize the toolkit.
  6. Click Activate Channel to allow the toolkit to read the parameters and status for the selected interface, and to perform analysis tasks.
  7. Successful activation of the Debug Toolkit is indicated by a message in the Messages tab.
