12.5.2.1. Generating a Design Example with the Debug Toolkit

To enable the Debug Toolkit in the design example, follow these steps:

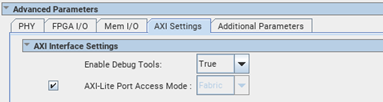

  1. Navigate to the Advanced Parameters section of the General IP Parameters tab.
  2. Select the AXI Settings tab.
  3. Set Enable Debug Tools to True.

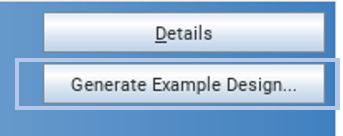

  4. After you have fully parameterized the interface, click Generate Example Design.

The generated design example has the debug toolkit enabled and all the necessary components wired up, as required for a single interface.
