The FEAST Algorithm

The Extended Eigensolver functionality is a set of high-performance numerical routines for solving symmetric standard eigenvalue problems, Ax=λx, or generalized symmetric-definite eigenvalue problems, Ax=λBx. It yields all the eigenvalues (λ) and eigenvectors (x) within a given search interval [λ min , λ max]. It is based on the FEAST algorithm, an innovative fast and stable numerical algorithm presented in [Polizzi09], which fundamentally differs from the traditional Krylov subspace iteration based techniques (Arnoldi and Lanczos algorithms [Bai00]) or other Davidson-Jacobi techniques [Sleijpen96]. The FEAST algorithm is inspired by the density-matrix representation and contour integration techniques in quantum mechanics.

The FEAST numerical algorithm obtains eigenpair solutions using a numerically efficient contour integration technique. The main computational tasks in the FEAST algorithm consist of solving a few independent linear systems along the contour and solving a reduced eigenvalue problem. Consider a circle centered in the middle of the search interval [λ min , λ max]. The numerical integration over the circle in the current version of FEAST is performed using Ne-point Gauss-Legendre quadrature with xe the e-th Gauss node associated with the weight ωe. For example, for the case Ne = 8:

  • ( x1, ω1 ) = (0.183434642495649 , 0.362683783378361),
  • ( x2, ω2 ) = (-0.183434642495649 , 0.362683783378361),
  • ( x3, ω3 ) = (0.525532409916328 , 0.313706645877887),
  • ( x4, ω4 ) = (-0.525532409916328 , 0.313706645877887),
  • ( x5, ω5 ) = (0.796666477413626 , 0.222381034453374),
  • ( x6, ω6 ) = (-0.796666477413626 , 0.222381034453374),
  • ( x7, ω7 ) = (0.960289856497536 , 0.101228536290376), and
  • ( x8, ω8 ) = (-0.960289856497536 , 0.101228536290376).

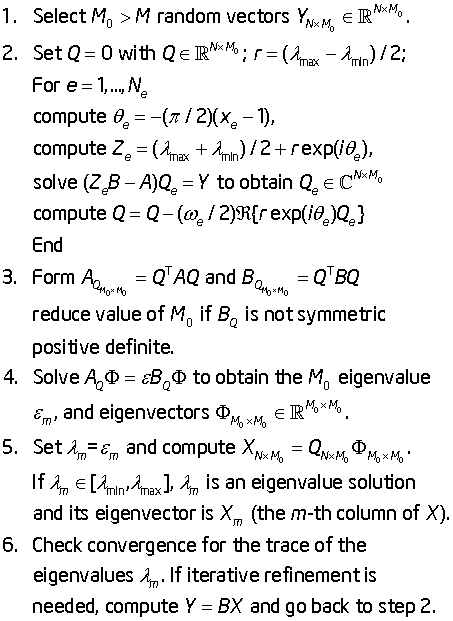

The figure FEAST Pseudocode shows the basic pseudocode for the FEAST algorithm for the case of real symmetric (left pane) and complex Hermitian (right pane) generalized eigenvalue problems, using N for the size of the system and M for the number of eigenvalues in the search interval (see [Polizzi09]).

NOTE:

The pseudocode presents a simplified version of the actual algorithm. Refer to http://arxiv.org/abs/1302.0432 for an in-depth presentation and mathematical proof of convergence of FEAST.

FEAST Pseudocode
  • A: real symmetric
  • B: symmetric positive definite (SPD)
  • {x}: real part of x
  • A: complex Hermitian
  • B: Hermitian positive definite (HPD)
