A.2.4.2.1. Agilex™ 5 Information

This lists a summary of the GTS AXI Streaming IP parameter settings in the GTS AXI Streaming IP parameter editor when the IP was generated, as read by the Agilex™ 5 Debug Toolkit when initialized.

All the information is read-only.

Use the Refresh button to read the settings.

Table 119.   Agilex™ 5 Available Parameter Settings
Parameter Values Descriptions
Intel Vendor ID 1172 Indicates the Vendor ID as set in the IP Parameter Editor.
Device ID 0 This is a unique identifier for the device that is assigned by the vendor.
Protocol PCIe Indicates the Protocol.
Port Type Root Port, Endpoint 4 Indicates the Hard IP Port type.
Intel IP Type intel_pcie_gts Indicates the IP type used.
Advertised speed 8.0GT, 16.0GT Indicates the advertised speed as configured in the IP Parameter Editor.
Advertised width x4, x2, x1 Indicates the advertised width as configured in the IP Parameter Editor.
Negotiated speed 2.5GT, 5.0GT, 8.0GT, 16.0GT Indicates the negotiated speed during link training.
Negotiated width x4, x2, x1 Indicates the negotiated link width during link training.
Link status Link up, link down Indicates if the link (DL) is up or not.
LTSSM State Refer to Hard IP Status Interface Indicates the current state of the link.
Lane Reversal True, False Indicates if lane reversal happens on the link.
Retimer 1 Detected, not detected Indicates if a retimer was detected between the Root Port and the Endpoint.
Retimer 2 Detected, not detected Indicates if a retimer was detected between the Root Port and the Endpoint.
Tx TLP Sequence Number Hexadecimal value Indicates the next transmit sequence number for the transmit TLP.
Tx Ack Sequence Timeout Hexadecimal value Indicates the ACK sequence number which is updated by receiving ACK/NAK DLLP.
Replay Timer Timeout Green, Red

Green: no timeout

Red: timeout
Malformed TLP Status Green, Red

Green: no malformed TLP

Red: malformed TLP detected
First Malformed TLP Error Pointer
  • AtomicOp address alignment
  • AtomicOp operand
  • AtomicOp byte enable
  • TLP length mismatch
  • Max payload size
  • Message TLP without TC0
  • Invalid TC
  • Unexpected route bit in Message TLP
  • Unexpected CRS status in Completion TLP
  • Byte enable
  • Memory address 4KB boundary
  • TLP prefix rules
  • Translation request rules
  • Invalid TLP type
  • Completion rules
  • Application


PIPE PhyStatus

0/1

Indicates the PMA and PCS are in reset mode.

0: PMA and PCS are out of reset

1: PMA and PCS are in reset

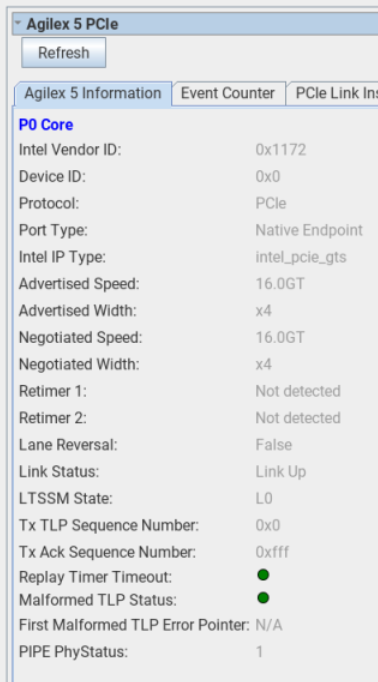

Figure 73. Example of Agilex™ 5 Parameter Settings
4 The current version of Quartus® Prime supports enabling the Debug Toolkit for Endpoint mode only, and for the Linux and Windows operating systems only.
