A.2.5. Using the Agilex™ 5 Link Inspector

The Lik Ispecto is foud ude the PCIe Lik Ispecto tab afte opeig the Debug Toolkit.

The Lik Ispecto is eabled by default whe the Eable Debug Toolkit is eabled.

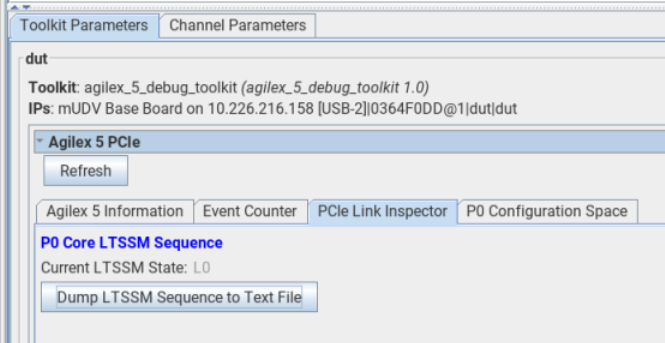

Figue 80. View of the Lik Ispecto

Whe the Dump LTSSM Sequece to Text File butto is iitially clicked, a text file (ltssm_sequece_dump_p0.txt) with the LTSSM ifomatio is ceated i the locatio fom whee the System Cosole widow is opeed. Depedig o the PCIe topology, thee ca be up to fou text files. Subsequet LTSSM sequece dumps ae appeded to the espective files.

Note: If you ope System Cosole i a diectoy that is ot witable, the text file caot be geeated. To avoid this issue, ope System Cosole fom the Commad Pompt widow (o a Widows system) o chage the diectoy's pemissio settigs to witable.
Example LTSSM Sequece Dump
         LTSSM State                     | Time (s) |  LTSSM State #
0x0      DETECT_QUIET                    | 5284883    |  0
0x1      DETECT_ACTIVE                   | 197        |  1
0x2      POLLING_ACTIVE                  | 25399190   |  2
0x5      PRE_DETECT_QUIET                | 1050       |  3
0x0      DETECT_QUIET                    | 640830     |  4
0x1      DETECT_ACTIVE                   | 297        |  5
0x2      POLLING_ACTIVE                  | 25307183   |  6
0x3      POLLING_COMPLIANCE              | 17897600   |  7
0x2      POLLING_ACTIVE                  | 65697      |  8
0x4      POLLING_CONFIG                  | 24558927   |  9
0x7      CONFIG_LINKWD_START             | 147        |  10
0x8      CONFIG_LINKWD_ACCEPT            | 893        |  11
0x9      CONFIG_LANENUM_WAIT             | 1827       |  12
0xa      CONFIG_LANENUM_ACCEPT           | 127        |  13
0xb      CONFIG_COMPLETE                 | 1097       |  14
0xc      CONFIG_IDLE                     | 1070       |  15
0x11     L0                              | 50         |  16
0xd      RECOVERY_LOCK                   | 487        |  17
0xf      RECOVERY_RCVRCFG                | 3137       |  18
0xe      RECOVERY_SPEED                  | 2627750    |  19
0xd      RECOVERY_LOCK                   | 40         |  20
0x20     RECOVERY_EQ0                    | 10485737   |  21
0x21     RECOVERY_EQ1                    | 257        |  22
0x22     RECOVERY_EQ2                    | 9357540    |  23
0x23     RECOVERY_EQ3                    | 12973550   |  24
0xd      RECOVERY_LOCK                   | 133        |  25
0xf      RECOVERY_RCVRCFG                | 453        |  26
0x10     RECOVERY_IDLE                   | 63         |  27
0x11     L0                              | 187        |  28
0xd      RECOVERY_LOCK                   | 790        |  29
0xf      RECOVERY_RCVRCFG                | 2323       |  30
0xe      RECOVERY_SPEED                  | 2235913    |  31
0xd      RECOVERY_LOCK                   | 40         |  32
0x20     RECOVERY_EQ0                    | 14500      |  33
0x21     RECOVERY_EQ1                    | 197187     |  34
0x22     RECOVERY_EQ2                    | 5052290    |  35
0x23     RECOVERY_EQ3                    | 8748963    |  36
0xd      RECOVERY_LOCK                   | 73         |  37
0xf      RECOVERY_RCVRCFG                | 243        |  38
0x10     RECOVERY_IDLE                   | 40         |  39
0x11     L0                              | -          |  Cuet


The cuet LTSSM state is: L0

Each LTSSM moito has a FIFO stoig the time values ad captued LTSSM states. Whe you choose to dump out the LTSSM states, eads ae depedet o the FIFO elemets ad ca empty out the FIFO.

The Lik Ispecto oly wites to its FIFO if thee is a state tasitio. I cases whee the lik is stable i L0, thee is o wite ad hece o text file is dumped.

Whe you wat to dump the LTSSM sequece, a sigle ead of the FIFO status of the espective coe is pefomed. Depedig o the empty status ad how may eties ae i the FIFO, successive eads ae executed.
