5.3.2. Verify the Simulation Results

The following sample output illustrates a successful simulation test run of the Single Instance 10GE Design Example in QuestaSim simulator. The script and waveform output is similar for other supported simulators.
# The time now is 20000000000
#
# The time now is 30000000000
#
# ---TX reset sequence completed -----
# The time now is 40000000000
#
# ---RX reset sequence completed -----
# The time now is 50000000000
#
# ---IP_INST[  0] Test    0;   ---Total     16 packets to send-----
# ------IP_INST[  0] Start pkt gen TX-----
# ------Checking Packet TX/RX result-----
# ------------   2 packets Sent;     0 packets Received--------
# ------------  16 packets Sent;    16 packets Received--------
# ------ALL   16  packets Sent out---
# ------ALL   16  packets Received---
# ------TX/RX packet check OK---

# ****Starting AVMM Read/Write****
# ====>MATCH!  Read addr = 00000104, ReaddataValid = 1 Readdata = abcdef01 Expected_Readdata = abcdef01

# The time now is 60000000000

# ====>MATCH!  Read addr = 00000108, ReaddataValid = 1 Readdata = 00000007 Expected_Readdata = 00000007
# ====>MATCH!  Read addr = 00100004, ReaddataValid = 1 Readdata = b1f05663 Expected_Readdata = b1f05663
# ====>MATCH!  Read addr = 00100008, ReaddataValid = 1 Readdata = 06b97b0d Expected_Readdata = 06b97b0d
# ====>MATCH!  Read addr = 00100080, ReaddataValid = 1 Readdata = deadc0de Expected_Readdata = deadc0de
# ====>MATCH!  Read addr = 00300080, ReaddataValid = 1 Readdata = deadc0de Expected_Readdata = deadc0de
# ====>MATCH!  Read addr = 00000af0, ReaddataValid = 1 Readdata = 00000000 Expected_Readdata = 00000000
# ====>MATCH!  Read addr = 00050014, ReaddataValid = 1 Readdata = 22334455 Expected_Readdata = 22334455
# ====>MATCH!  Read addr = 0005001c, ReaddataValid = 1 Readdata = 000005ee Expected_Readdata = 000005ee
# ====>MATCH!  Read addr = 00050014, ReaddataValid = 1 Readdata = 01234567 Expected_Readdata = 01234567
# ====>MATCH!  Read addr = 00050018, ReaddataValid = 1 Readdata = 000089ab Expected_Readdata = 000089ab
# ====>MATCH!  Read addr = 000a5000, ReaddataValid = 1 Readdata = 00000000 Expected_Readdata = 00000000
#  **** AVMM Read/Write Operation Completed for IP_INST[  0]****
# ** Testbench complete# ***********************************

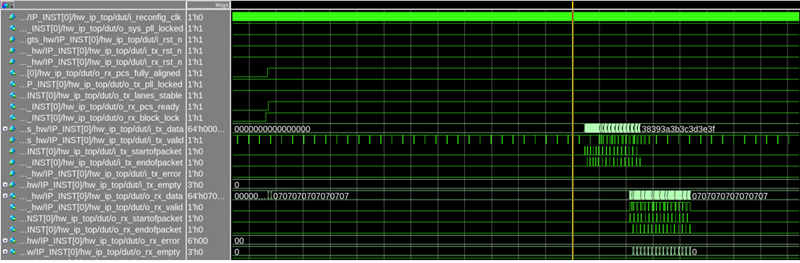

The following sample waveform illustrates a simulation test run of the Single Instance 10GE Design Example in QuestaSim simulator.
