8.3.2. Simulator Output

The following sample output illustrates a successful simulation test run for 10GE MAC with PTP QuestaSim simulator. The script and waveform output is similar for other supported simulators.

TX PTP Command #6
# Egress Timestamp Request        : 0
# Insert Timestamp                : 1
# Update CorrectionField          : 0
# Clear UDP/IPv4 Checksum         : 0
# Update UDP/IPv6 Extended Bytes      : 0
# Add Peer-to-Peer (P2P) MinPathDelay : 0
# Add Asymmetry Delay             : 0
# Asymmetry Delay Sign            : 0
# Asymmetry & P2P MinPathDelay Select : 0
# Timestamp Field Offset          : 0x0014
# Correction Field Offset         : 0x001e
# TX Fingerprint Data             : 0x00000006
# TX Ingress Timestamp            : 0x000000000000000000000000
# Timestamps #6
# TX Egress Timestamp             : 0x0000000000000002cb00cd80
# RX Ingress Timestamp            : 0x0000000000000002cb00c580
# TX User Fingerprint             : 0x00000006
# TX Returned Fingerprint         : 0x00000006
# Comparison #6
# RX_ITS - TX_ETS       : 0x1fffffffffffffffffffff800/-0.0312 ns
# TX Timestamp Fields   : 0xaa1516aa18191a1b1c1d
# RX Timestamp Fields   : 0x0000000000000002cb00
 # TX Compensation Fields  : 0x1e1f20212223bbcc
# RX Compensation Fields  : 0x1e1f2021222489c7
 # Begin PTP AVMM Test
# ====>MATCH!  Read addr = 00040224, ReaddataValid = 1 Readdata = 00000010 Expected_Readdata = 00000010

***************************************************************************************************

# PTP AVMM Test Completed
# ****Starting AVMM Read/Write****

****************************************************************************************************

# ====>MATCH!  Read addr = 000a5000, ReaddataValid = 1 Readdata = 00000000 Expected_Readdata = 00000000
#
# **** AVMM Read/Write Operation Completed for IP_INST[  0]****
# ** Testbench complete

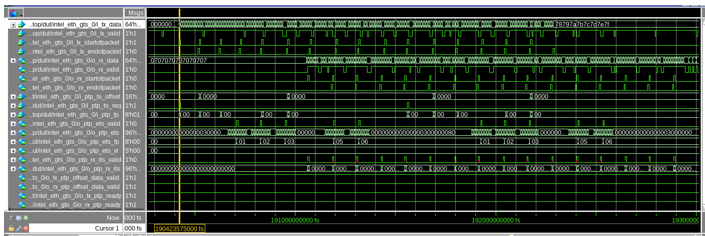

The following sample waveforms illustrates a simulation test run for 10GE MAC with PTP QuestaSim simulator.
