6.3.2. Simulators Output

The following sample output illustrates a successful simulation test run of the MII PCS only in QuestaSim simulator. The script and waveform output is similar for other supported simulators.

# The time now is 20000000000
#
# The time now is 30000000000
#
# ---TX reset sequence completed -----
# The time now is 40000000000
#
# ---RX reset sequence completed -----
# The time now is 50000000000
#
# ---IP_INST[0] Test 0;   ---Total 16 packets to send-----
# ------IP_INST[  0] Start pkt gen TX-----
# ------Checking Packet TX/RX result-----
# ------------0 packets Sent;   0 packets Received--------
# ------------3 packets Sent;   0 packets Received--------
# ------------ 6 packets Sent;  3 packets Received--------
# ------------ 9 packets Sent;  6 packets Received--------
# ------------ 1 packets Sent;  9 packets Received--------
# The time now is 60000000000

# -----------11 packets Sent;   9 packets Received--------
# -----------11 packets Sent;   9 packets Received--------
# -----------16 packets Sent;   16 packets Received--------
# ------ALL   16  packets Sent out---
# ------ALL   16  packets Received---
# ------TX/RX packet check OK---
#
# ****Starting AVMM Read/Write****
# ====>MATCH!  Read addr = 00000104, ReaddataValid = 1 Readdata = abcdef01 Expected_Readdata = abcdef01
#
# ====>MATCH!  Read addr = 00000108, ReaddataValid = 1 Readdata = 00000007 Expected_Readdata = 00000007
#
# ====>MATCH!  Read addr = 00100004, ReaddataValid = 1 Readdata = b1f05663 Expected_Readdata = b1f05663

# ====>MATCH!  Read addr = 00100008, ReaddataValid = 1 Readdata = 06b97b0d Expected_Readdata = 06b97b0d

# ====>MATCH!  Read addr = 00000af0, ReaddataValid = 1 Readdata = 00000000 Expected_Readdata = 00000000
#
# ====>MATCH!  Read addr = 00060008, ReaddataValid = 1 Readdata = 000000ff Expected_Readdata = 000000ff
#
# ====>MATCH!  Read addr = 000a5000, ReaddataValid = 1 Readdata = 00000000 Expected_Readdata = 00000000
#
# **** AVMM Read/Write Operation Completed for IP_INST[0]****
# **** Testbench complete **********************

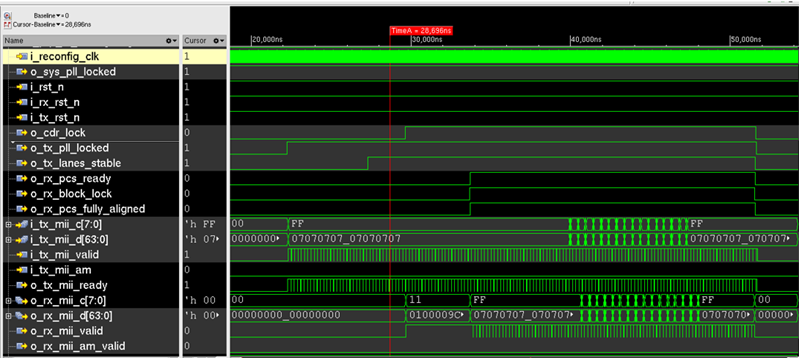

The following sample waveform illustrates a simulation test run for MII PCS only QuestaSim simulator
