Intel® Trace Analyzer and Collector User and Reference Guide

View

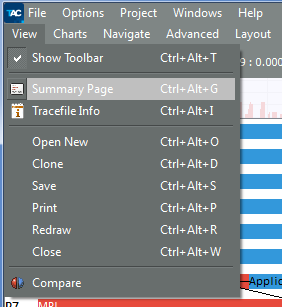

The View contains the options that apply to the entire View.

These options are:

Option: Keyboard Shortcut: Description:
Show Toolbar
Ctrl+Alt+T
 Have easy access to the Intel® Trace Analyzer functionality that is most often used
Summary Page
Ctrl+Alt+G
 Get summary information about the time your application spent in MPI
Tracefile Info
Ctrl+Alt+I
 Get information about the current trace
Open New
Ctrl+Alt+O
 Open a new View with the Charts previously selected in the Tracefile preferences tab of the Preferences dialog box.
Clone
Ctrl+Alt+D
 Create a one-to-one clone of the current View
Save
Ctrl+Alt+S
 Save the entire View as a picture
Print
Ctrl+Alt+P
 Print a copy of the View
Redraw
Ctrl+Alt+R
 Repaint the entire View
Close
Ctrl+Alt+W

Close the current View.

If the last View for a trace file is closed, the trace file is closed as well.
Compare None Choose the trace files for comparison and compare them with the help of the Comparison dialog box. The traces may represent two runs or two ranges of the same run. Comparison dialog box displays data from the two trace files.
Configure Trace Collector None Open the Configuration Assistant
Parent topic: View Menu Bar
