Intel® Trace Analyzer and Collector User and Reference Guide

Context Menu

You can access the context menu by right-clicking the Quantitative Timeline. Some general context menu options are common to all Charts. Quantitative Timeline provides some options that are specific to this timeline.

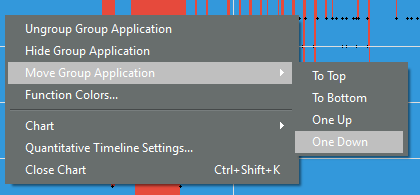

Specific Event Timeline context menu options:

Entry: Description:
Ungroup Group Application/Group MPI Ungroup the given function group
Regroup Group MPI Regroup previously ungrouped function group
Hide Group Application/Group MPI Conceal the chosen activity
Move Group Application/Group MPI

Change the position of different groups

The selected group can be moved to the top, to the bottom, upward by one position or downward by one position.
Function Colors... Open Function Group Color Editor (in grouped mode) or color selection dialog (in ungrouped mode) to apply new colors to functions
Charts Print, save, clone and move the Chart (for more details, see section Common Chart Features)
Quantitative Timeline Settings Set or reset the Quantitative Timeline preferences
Close Chart Stop using the Quantitative Timeline
Parent topic: Quantitative Timeline
