8.2.5.4. Parameterizing the External Memory Interfaces Intel Calibration IP

The EMIF Calibration IP tab lets you select the type of debug interface that you want, and whether to skip calibration or perform a full calibration while simulating your design.

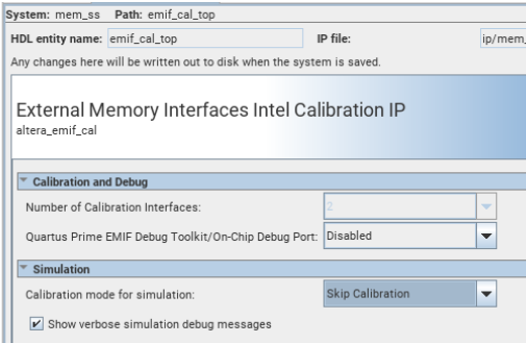

Figure 58. EMIF Calibration IP Tab
