4.2.1. External Memory Interfaces IP Parameters Tab

The External Memory Interfaces parameters reside on the Platform Designer window that appears once you parameterize the high-level topology, generate IPs within the memory subsystem, and finally click Dive into Packaged Subsystem.

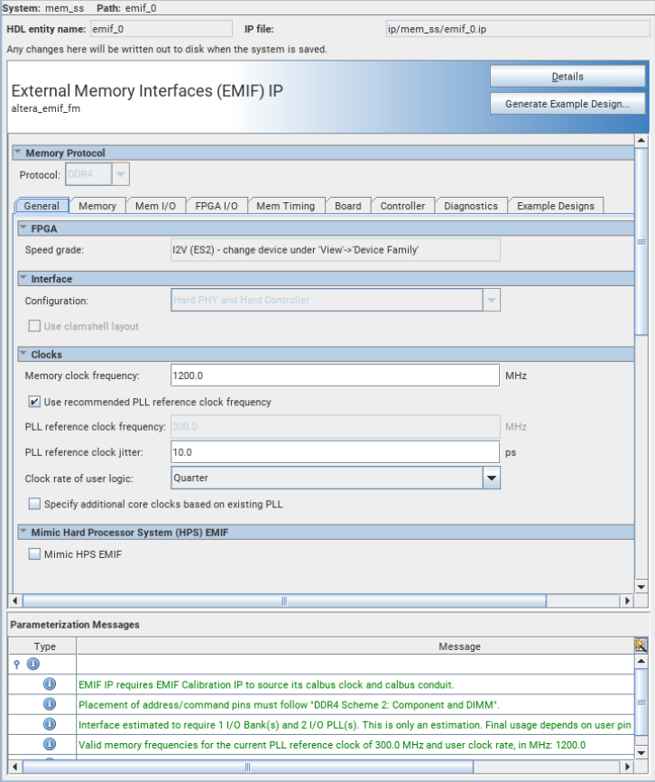

Figure 18. EMIF Customization Tab

All parameters and the available options are described in the External Memory Interfaces Intel Agilex® 7 F-Series and I-Series FPGA IP User Guide , refer to this user guide for more information on how to parameterize this IP.
