8.2.5.1. Parameterizing the External Memory Interface (EMIF) IP

Click on the EMIF IPs that you want to parametrize.

The Parameters tab shows the selected IP and all the parameters that you are permitted to change. Only the DDR4 protocol is supported.

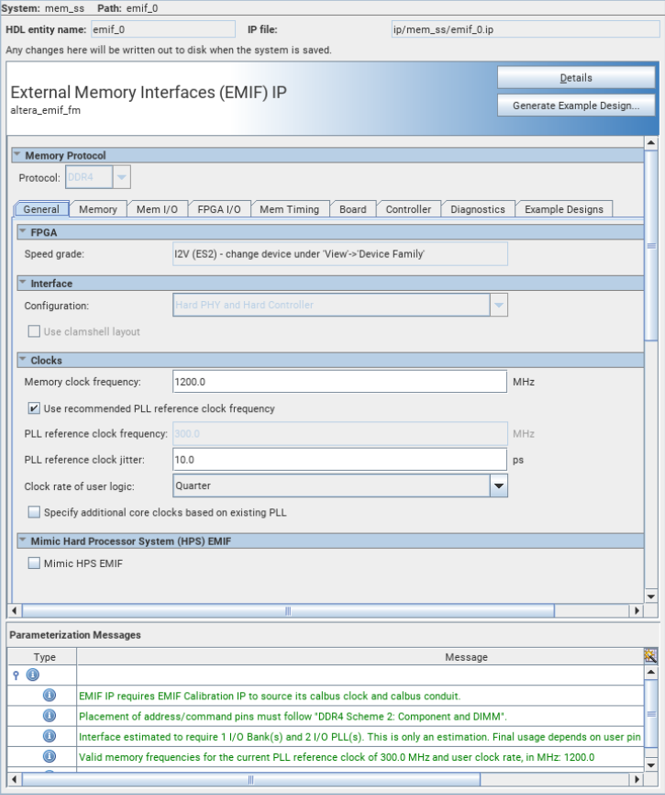

Figure 53. External memory Interfaces Parameters Tab

For more information on the possible parameters and options, refer to the External Memory Interfaces Intel Agilex® 7 F-Series and I-Series FPGA IP User Guide .
