4.3. Lookup IPs

Configuration of Lookup IPs is enabled only in the Platform Designer window that is shown once you parametrize the high-level topology, generate IPs within the memory subsystem, and finally click Dive into Packaged Subsystem.

For each associative storage interface that you defined in the high-level topology, a content-addressable memory (CAM) IP is instantiated in the Platform Designer window.

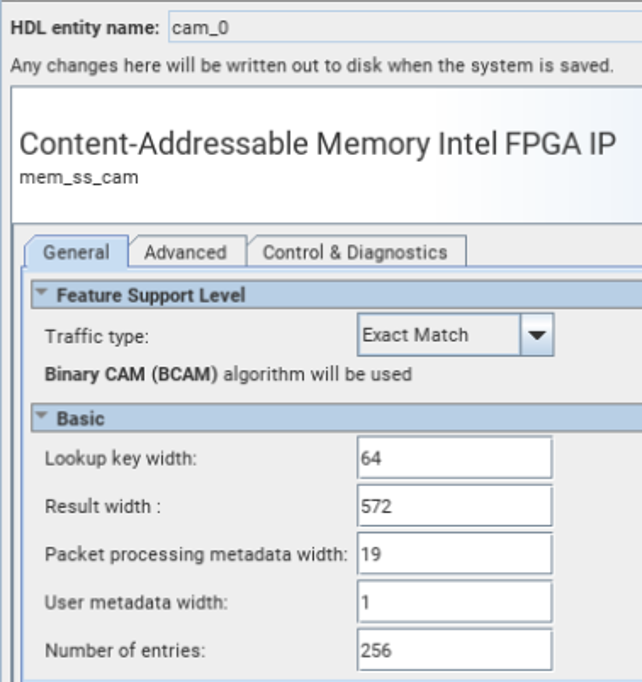

The following figure shows the parameter editor for this type of IP. Select the desired traffic type and accordingly refer to the parameters below, to configure TCAM, BCAM and MBL.

Figure 19. CAM IP Parameter Editor Tab

Section Content
TCAM
BCAM
MBL

Level Two Title
