8.1. Launching the Memory Subsystem IP

This topic describes how to launch the memory subsystem IP.

To launch the memory subsystem IP, create an Intel® Quartus® Prime project and select an Intel Agilex® 7 F-Series or I-Series FPGA device. Go to the IP Catalog and then click Library > Memory Interfaces and Controllers > Memory Subsystem Intel FPGA IP.

The above steps open the Create New IP Variant dialog box, with the fields populated as defined in your command. You can select an existing Intel® Quartus® Prime project to add memory subsystem to it, or leave it as None to generate just the memory subsystem IP design example.

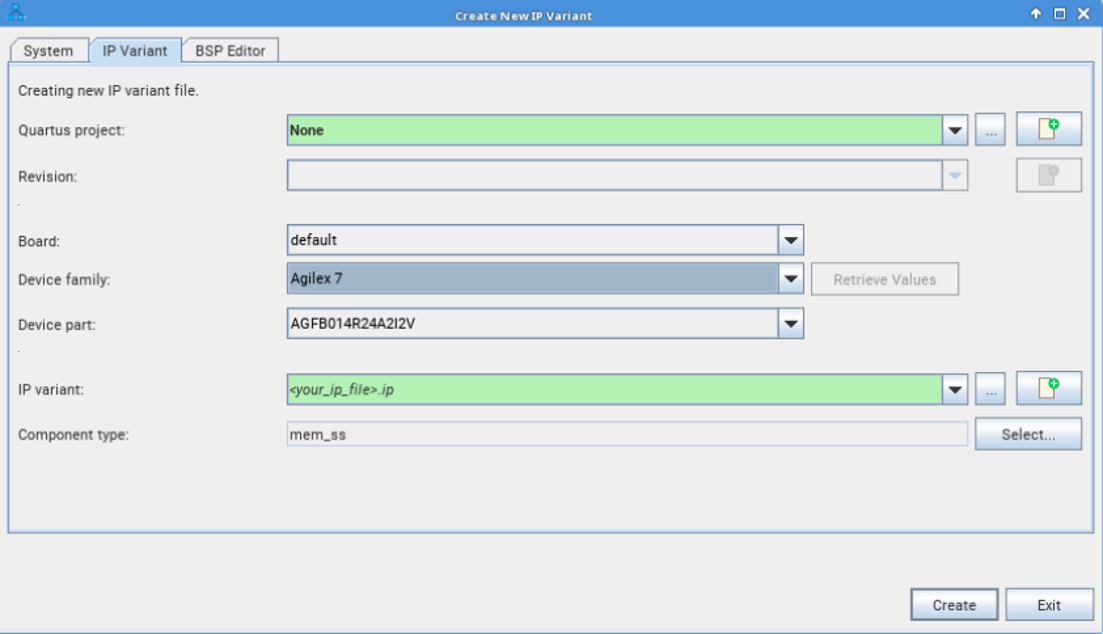

Figure 43. Launching the Memory Subsystem IP Parameter Editor

Click Create to launch the memory subsystem IP parameter editor.
