The Design Example tab provides the parameters to create a design example of the memory subsystem using your customized IP variant.

You can specify to create files for synthesis and simulation. You can also specify a target development board, if desired.

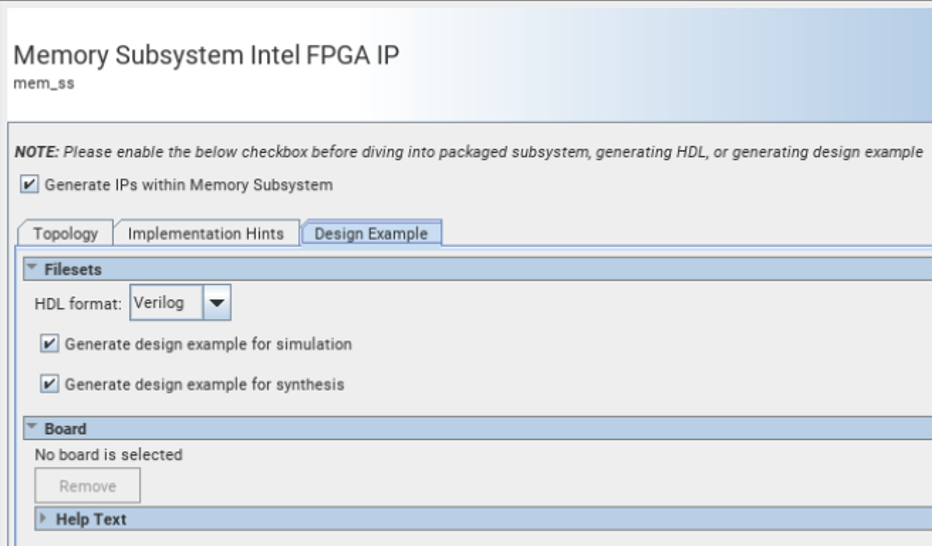

Figure 60. Design Example Tab

Generating a Design Example

  1. Set the appropriate parameters on the various tabs, for the memory subsystem IP that you want to create.
  2. Click the Generate Example Design button to generate a design example of the memory subsystem IP that you have configured.
