8.2.4. Generating IPs within the Memory Subsystem

After defining the high-level topology of the memory subsystem IP, you must then check Generate IPs within Memory Subsystem to generate the CAM, EMIF, MSA, and HPS EMIF IPs and their connections.

You must also check Generate IPs within Memory Subsystem before clicking Dive into Packaged Subsystem; failing to do so causes incorrect information to appear in the Platform Designer window where further parametrization of the IP is performed.

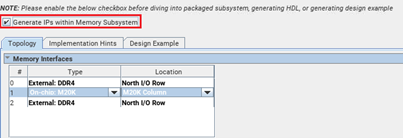

Figure 51. Location of the Generate IPs within Memory Subsystem Checkbox
