5.3.4. Setting up CvP Parameters for CvP Update Mode

Follow these steps to specify CvP parameters using the Quartus Prime software:
  1. On the Assignments menu, select Device, and then click Device and Pin Options.
  2. Under Category first select General, and then enable following options:
    1. Auto-restart configuration after error. If this option is enabled, CvP restarts after an error is detected.
    2. Enable autonomous PCIe HIP mode.

      Checking this box has no affect if you have enabled CvP by turning on Enable Configuration via the PCIe link in the Hard IP for PCI Express GUI, hence Altera recommends to keep it unchecked.

    3. Leave all other options disabled.
    Figure 40. Device and Pin Options Window
  3. Under Category select Configuration to specify the configuration scheme and device. Specify the settings in the following table:
    Table 19.   CvP Update Mode Configuration Settings

    Parameter

    Value

    Configuration scheme

    Passive Serial

    Configuration mode

    Standard

    Configuration device

    Auto

    Configuration device I/O voltage

    Auto

    Force VCCIO to be compatible with configuration I/O voltage

    Leave this option off.

    Generate compressed bitstreams

    Leave this option on.

    Active serial clock source

    100 MHz Internal Oscillator

    Enable input tri-state on active configuration pins in user mode

    Leave this option off.

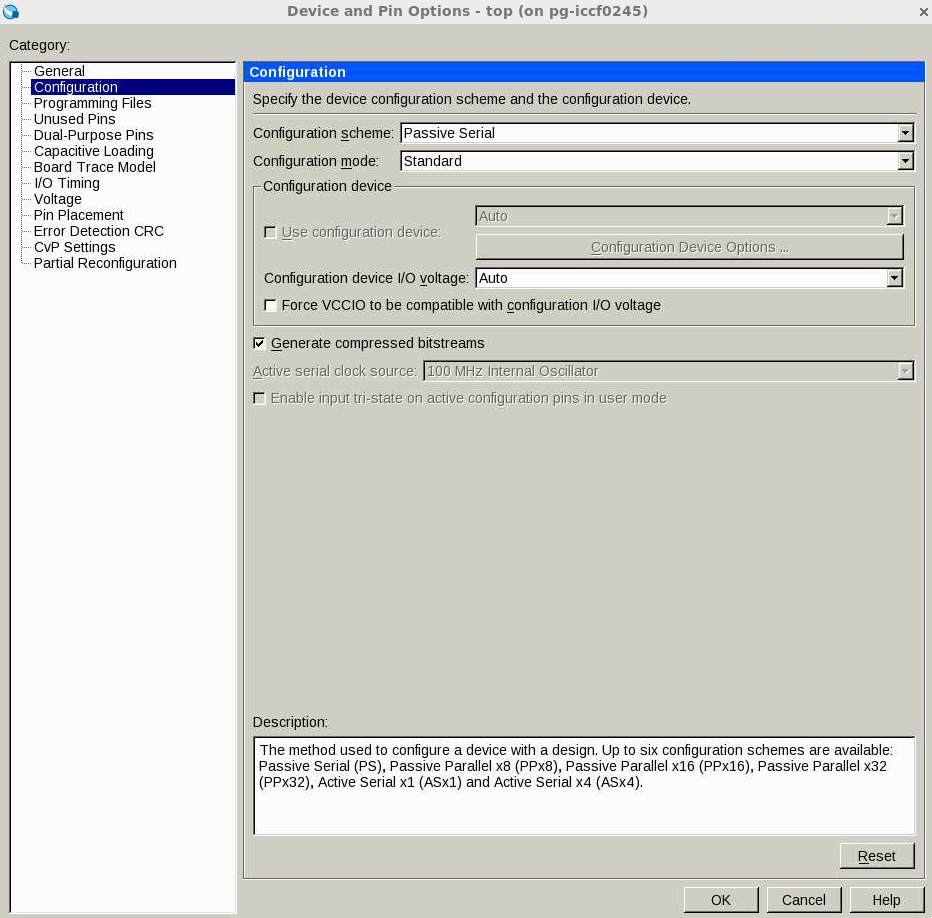

    Figure 41. Configuration Window
  4. Under Category select CvP Settings. Specify the settings in the following table:
    Table 20.   CvP Update Category Settings

    Parameter

    Value

    CvP via Protocol

    Core update

    Enable CvP_CONFDONE pin

    Turn this option on.

    Enable open drain on CvP_CONFDONE pin

    Turn this option on.

    Figure 42. CvP Settings Window
  5. Click OK to close the Device and Pin Options dialog box.
  6. Click OK to close the Device dialog box.
  7. Save your project.
