1.5.2.3.1. Windows* Environment
- Start an embedded command shell.
Figure 26. Open an Embedded Command Shell
- Go to the a10_soc_devkit_ghrd folder.
$ cd <your_working_directory>/a10_soc_devkit_ghrd/
- Start the BSP Editor.
$ bsp-editor&
- In the BSP Editor window, select File > New HPS BSP... to open a new BSP window.
- In the new BSP window:
- Click the browse (…) button next to the Preloader Setting Directory text box and browse to the <your_working_directory>/a10_soc_devkit_ghrd/hps_isw_handoff folder. Click Open to return to the new BSP window.
- Select the Operating system to be UEFI Bootloader (Arria 10 HPS) in the pull-down menu.
- Leave the Use default locations enabled to create the new BSP in the <Working_Directory>/a10_soc_devkit_ghrd/software/uefi_bsp folder.
- Click OK to create the BSP settings file and close the New BSP window.

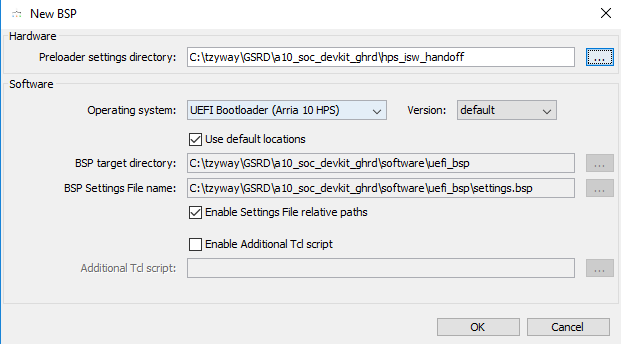

Figure 27. New BSP Window Settings - In the BSP Editor window, edit the BSP settings as follows:
- boot_device: Boot from SD/MMC (default)
- model: SOCFPGA Arria 10 Dev Kit (default)
- disable_uefi_build: unchecked (default)
- rbf_filename: ghrd_10as066n2.rbf (default was socfpga.rbf)
- peripheral_rbf_filename: periph.rbf (default)
- core_rbf_filename: core.rbf (default)
- rbf_offset: 0x720000 (default)

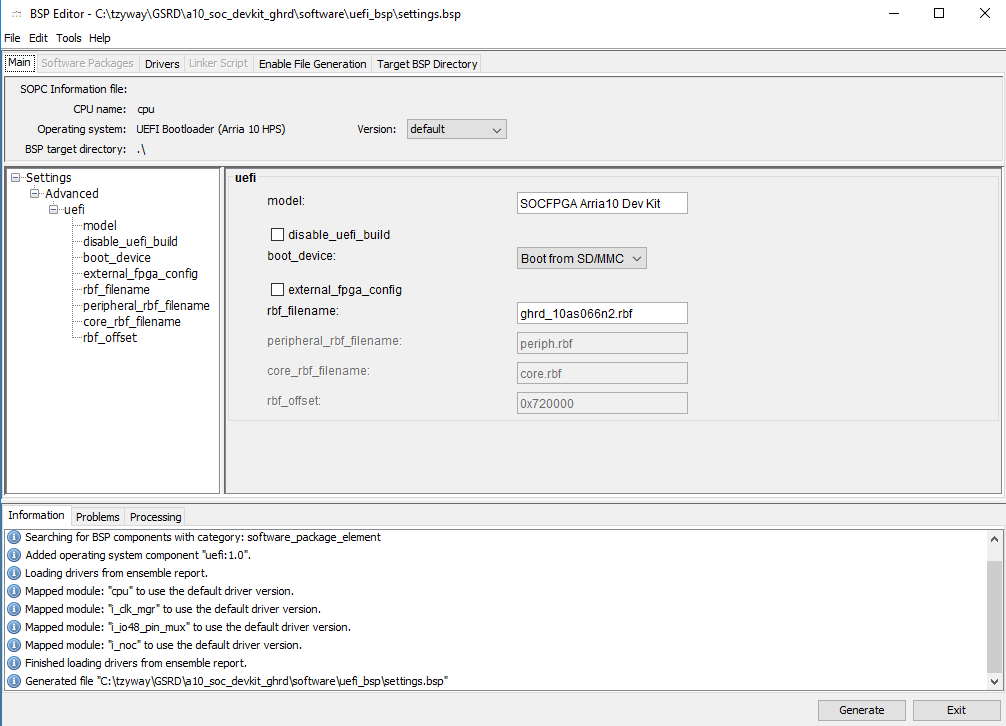

Figure 28. BSP Settings - In the BSP Editor window, click Generate in the lower right hand corner to produce the source code and the UEFI device tree.
- When the file generation is complete, click Close in the BSP Editor window.
The following files are generated in the <your_working_directory>//a10_soc_devkit_ghrd/software/uboot_bsp folder:
- config.mk
- devicetree.dts
- Makefile
- settings.bsp
