1. Intel® Arria® 10 SoC UEFI Boot Loader User Guide

1.5.1.4.4. Single RBF Conversion Using the Intel® Quartus® Prime Pro Edition Programmer Command Line Tools

  1. Open an SoC FPGA EDS command shell.
  2. Type the following command to convert the file:
    $ quartus/bin/quartus_cpf -c -o bitstream_compression=on
 <your_working directory>/a10_soc_devkit_ghrd/output_files/ghrd_10as066n2.sof
 <your_working directory>/a10_soc_devkit_ghrd/output_files/ghrd_10as066n2.rbf

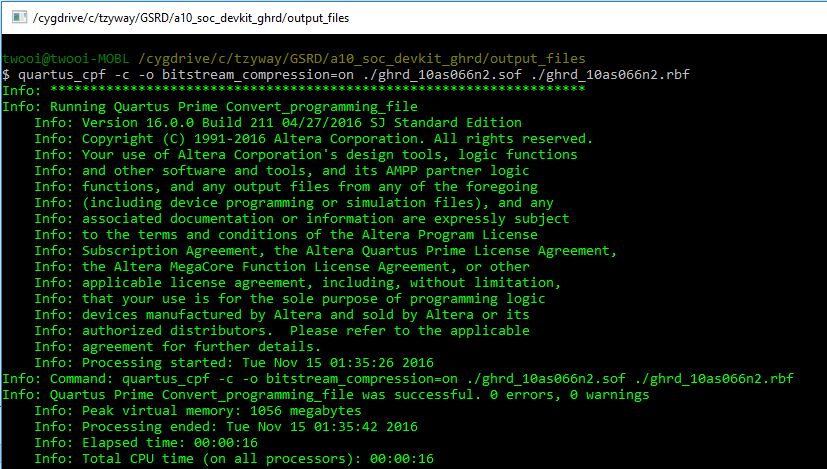

    Figure 19.  SoC FPGA EDS File Conversion Command
    The command creates the following file: <your_working directory>/a10_soc_devkit_ghrd/output_files/ghrd_10as066n2.rbf.
