1.15.2. Enabling the TFTP Server through the Windows* Firewall

  1. Click on your machine Internet connection access icon follow by selecting Open Network and Sharing Center.
  2. Select Windows Firewall.
  3. Select Allow a program or feature through Windows Firewall.
  4. Scroll down and check the TFTP Server checkbox to allow this program to communicate through Windows* Firewall

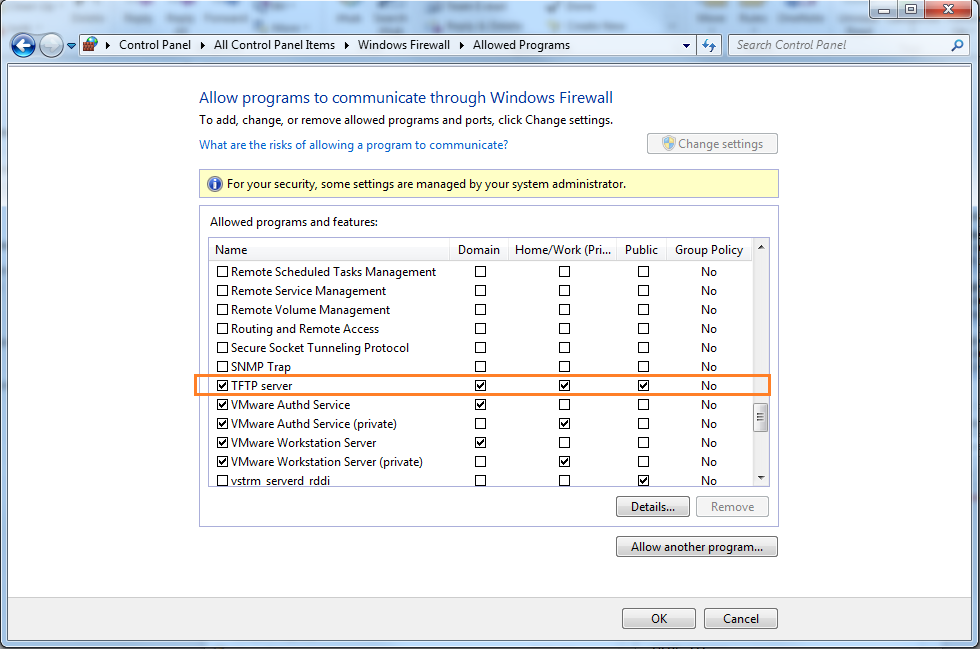

    Figure 152. Enabling TFTP Server to Communication Through Firewall
