1.5.7.4. Booting Integrity Real-Time Operating System from QSPI

  1. Complete the steps in Updating the Golden Hardware Reference Design to Boot from QSPI, Compiling the Hardware and Software for QSPI and Compiling the UEFI Source Code with the Updated QSPI Device Tree Blob.
  2. Complete the steps in the Programming the Integrity Real-Time Operating System Image section.
  3. Insert the programmed QSPI daughter card into J23.
  4. Start a serial terminal program.
  5. Power up the board. During this time, there is no console output for approximately 15 seconds.
  6. A series of output messages display on your serial terminal program ending with the following completion message:

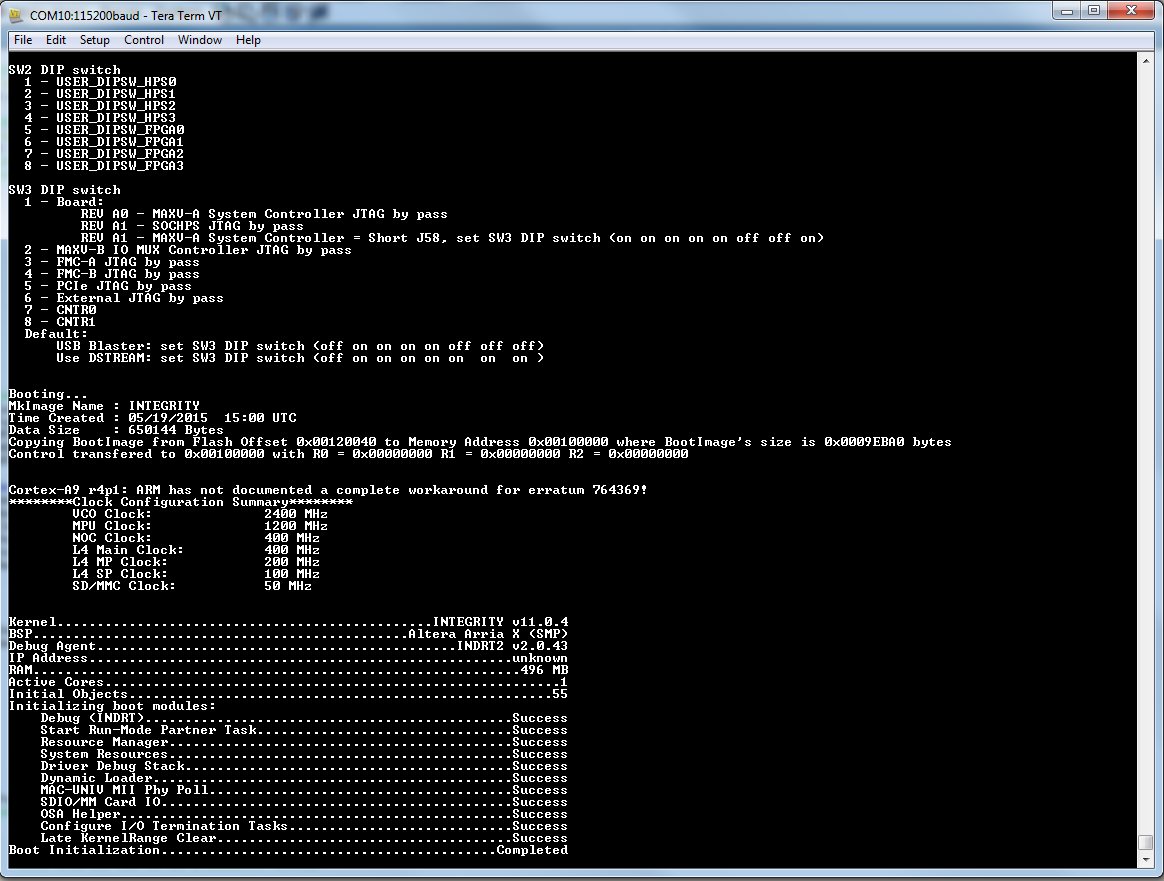

    Figure 70. Integrity RTOS Boot Completion Message Output
