1. Intel® Arria® 10 SoC UEFI Boot Loader User Guide

1.15.3. Using the TFTP Server in Windows*

  1. Start Tftpd64 by selecting Start > All > Tftpd64 > Tftpd64. Alternatively, you can double-click the Tftpd64 icon on your desktop.
  2. When the Tftpd64 program opens, click on the Settings button.
    Figure 153. Selecting the Settings Button

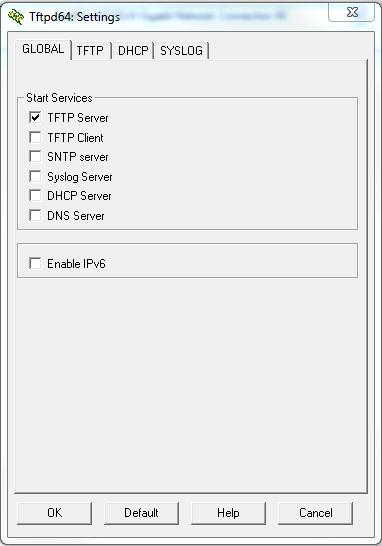

  3. Click on the Global tab and put a check mark only to the TFTP Server option. Remove checkmarks from all other options.
    Figure 154. Tftpd64 Settings
  4. Click on the TFTP tab. The tab appears as shown below.
    Figure 155. Tftpd64 Global Settings: TFTP Tab
  5. Click on the Browse button to specify the Base Directory. You must specify the Base Directory of the TFTP Server. Select the TFTP folder in your computer as the Base Directory.
    Note: All the files transferred using TFTP Server are placed in the Base Directory.
  6. Under the TFTP Security option, select the Standard option. Ensure that you select the option Bind TFTP to this address, which is your machine IPv4 address. Use the address that is available in the drop down box.
  7. Once you have performed all the above steps, click OK. A window appears asking to restart Tftpd64 to apply the new settings.
  8. Click OK.
