1.5.6.4. Booting Integrity Real-Time Operating System from SD/MMC

  1. Complete the steps in Creating an SD Card Image on Linux section or Creating an SD Card Image on Windows depending on your OS.
  2. Complete the corresponding steps in Programming the Integrity Real-Time Operating System Image.
  3. Insert the programmed SD/MMC daughter card into J23.
  4. Start a serial terminal program.
  5. Power up the board. During this time, there is no console output for approximately 15 seconds.
  6. For a normal boot flow, you see a series of output messages on your serial terminal program ending with the following completion message:

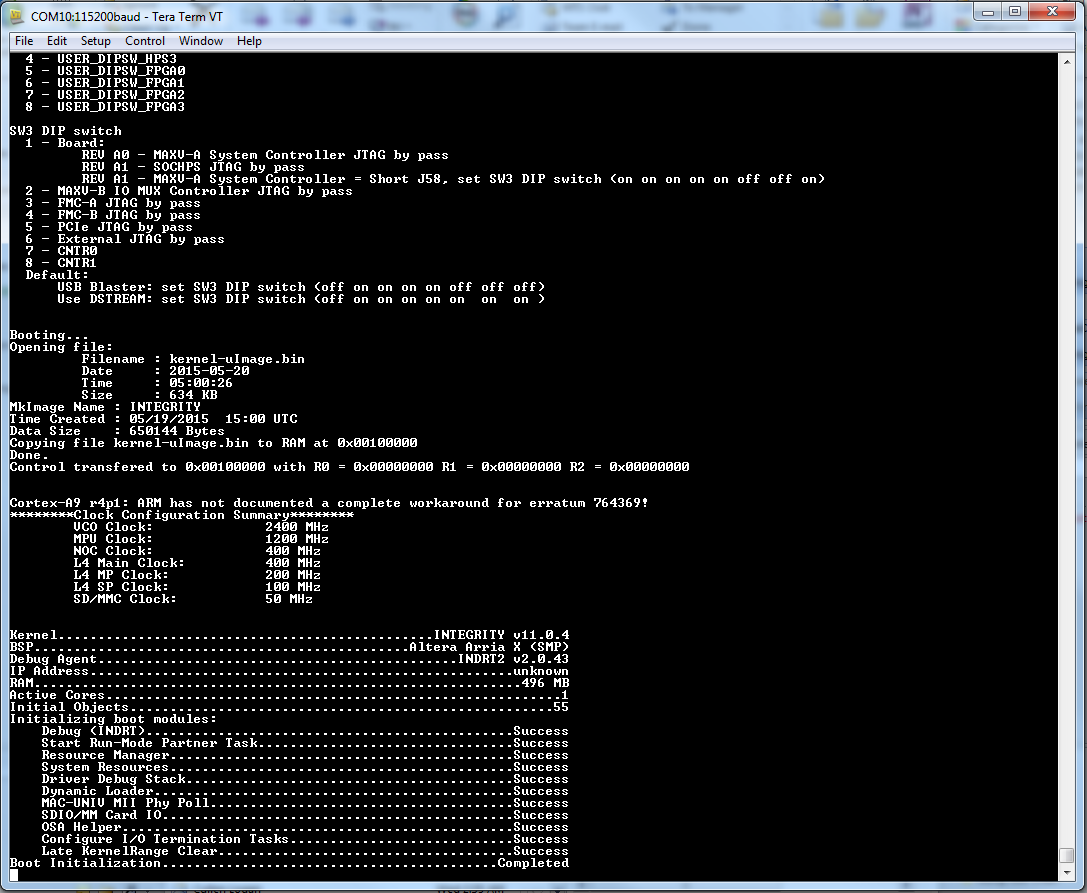

    Figure 66. Integrity RTOS Boot Completion Message Output
