1.5.1.2. Generate the System in Platform Designer

  1. In Intel® Quartus® Prime, select Tools > Qsys from the menu bar to start the Platform Designer tool.

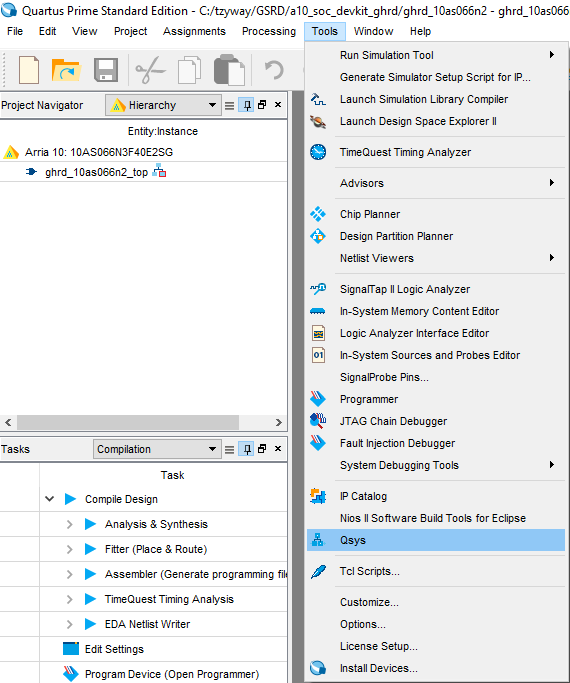

    Figure 7. Opening the Platform Designer Tool
    An Open file dialog box appears.
  2. Select the ~/a10_soc_devkit_ghrd/ghrd_10as066n2.qsys file and click Open.

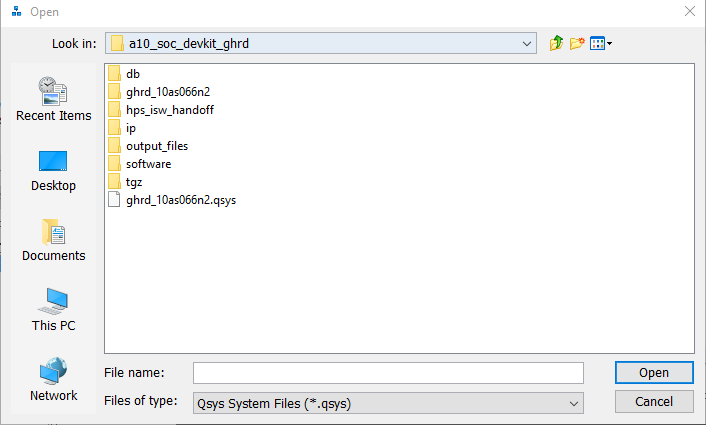

    Figure 8. Opening a Project from the Dialog Box
    Platform Designer loads the project and displays the system.
    Figure 9. Loading the Platform Designer Project
  3. Click the Generate HDL... button on the bottom right corner of the window.
  4. When the Generation dialog box appears, click the Generate button.

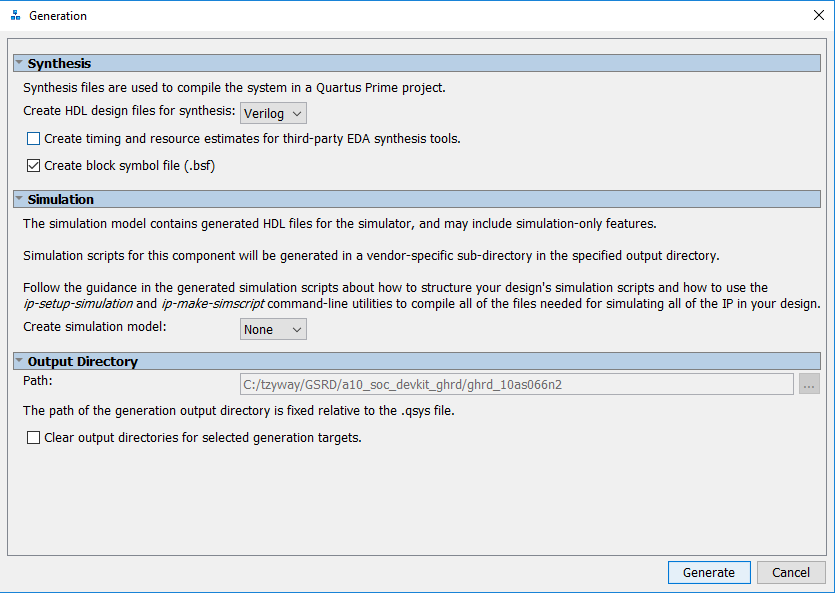

    Figure 10. Generation Window
    Platform Designer generates the system and a Generate Completed window appears.
  5. Click Close to get back to the main Platform Designer window.
  6. Click Finish in the lower right corner to close the Platform Designer window and return to the main Intel® Quartus® Prime window.
