1.7.3. Ping Test

This task describes how to pin the host name of the IP address.

  1. Complete the steps in Checking Your Machine or Laptop IPv4 Address.
  2. Type the following command:
    ping 137.57.118.26
    Note: 137.57.118.26 is the host IP address.

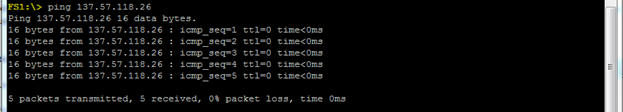

    Figure 122. Ping Test Output
