1.5.1.4.3. Single RBF Conversion Using the GUI Converter

  1. Launch Intel® Quartus® Prime Pro Edition.

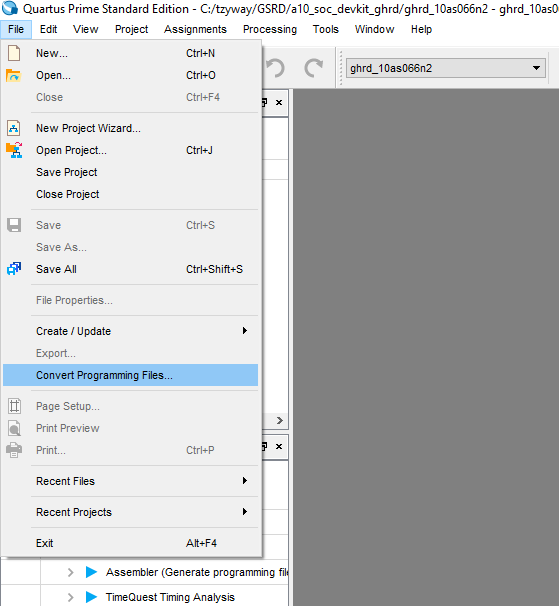

  2. From the Intel® Quartus® Prime Pro Edition menu, select File > Convert Programming Files....
    Figure 14. Convert Programming Files Selection

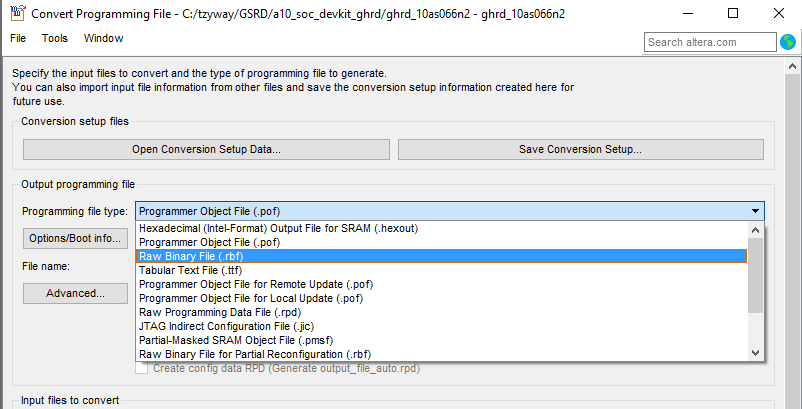

  3. Select the Programming file type to be Raw Binary File (.rbf).
    Figure 15. Programming File Type Selection

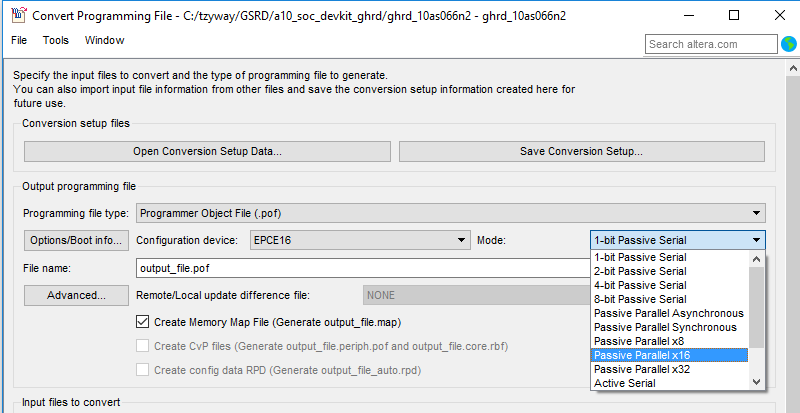

  4. Select the Mode to be Passive Parallel x8 or Passive Parallel x16.
    Figure 16. Selecting Mode
  5. Click SOF Data and then click Add File....
    Figure 17. Add SOF File

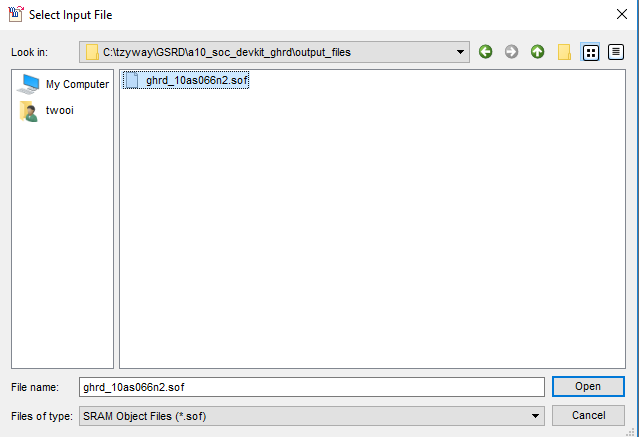

  6. Browse to <your_working_directory>/a10_soc_devkit_ghrd/output_files/ghrd_10as066n2.sof file and click Open.
    Figure 18. Open SOF File
  7. In the Conversion setup files window type ghrd_10as066n2.rbf in the File Name prompt.
  8. Click the Close button to exit the Convert Programming File window.
    These steps create a ghrd_10as066n2.rbf file in the <your_working_directory>/a10_soc_devkit_ghrd/output_files/ folder.
