1. Intel® Arria® 10 SoC UEFI Boot Loader User Guide

1.7.1. Obtain the IP Address from the DHCP Server

  1. Type 1 to select the shell.
  2. Observe the following messages that confirm that the DHCP works.

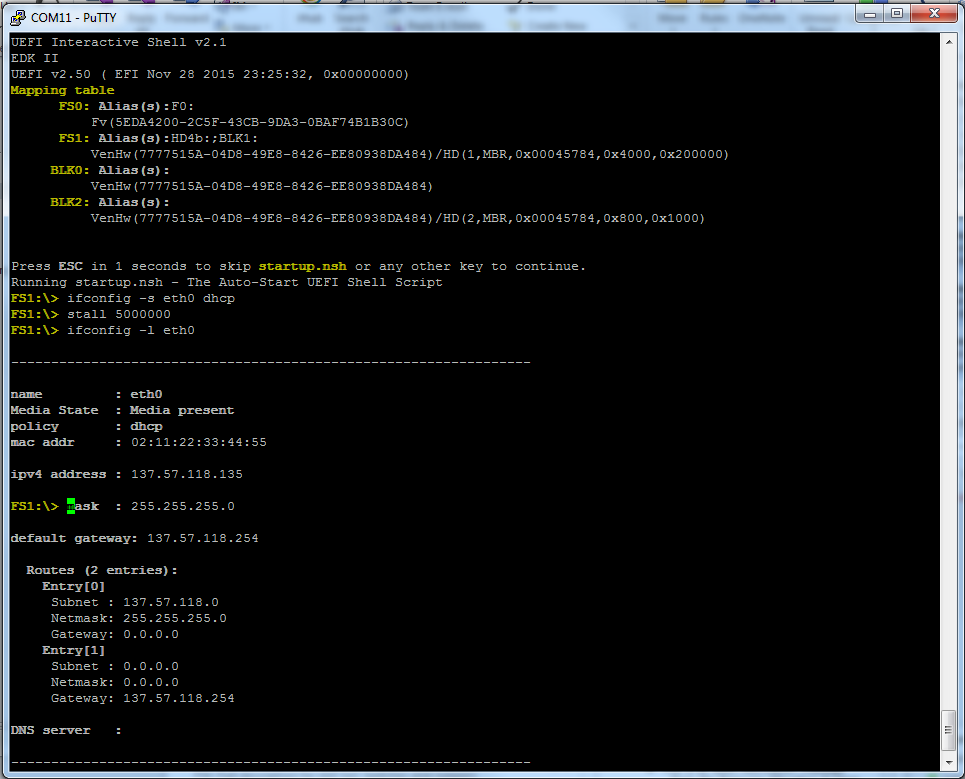

    Figure 121. DHCP Confirmation Messages
    Note:

    The first command, if config -s eth0 dhcp, that is shown in the screenshot above is to instruct the backend services to start DHCP initialization. On a typical corporate network, it may take up to 5 seconds for the DHCP server to assign the board an IP address. Thus, there is a stall 500000 command to delay 5 seconds.

    The ifconfig -l eth0 command lists the IP address assigned to this board. For complete help, type help ifconfig in the UEFI Shell.

Level Two Title
