1.5.10.3. Watching Variable Contents

This task describes how to check the contents of a variable.

  1. Select Window > Show View > Variables.
    Figure 107. Entering Variable Content View

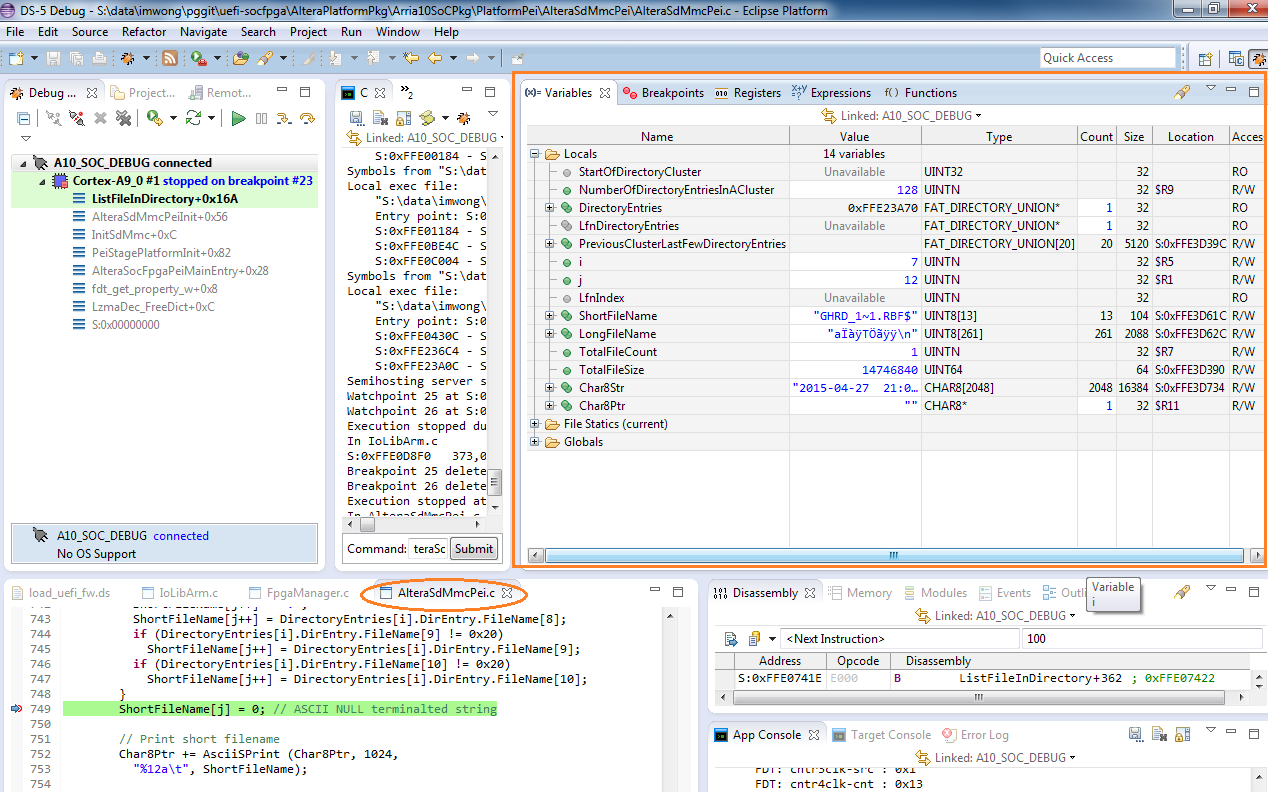

  2. Observe the content of your variables in the Variables window. The screenshot below shows the Locals variable content for the AlteraSDMmcPei.c file.
    Figure 108. Locals Variable Watch
