1.5.11.1. Changing the Platform Name

If you are not using the Intel® Arria® 10 SoC FPGA development board and want to change to your platform name, you can edit parameters in the Arria10SoCPkg.dsc file to support this.

  1. Use your preferred editor to open the <your_uefi_socfpga>/uefi-socfpga/AlteraPlatformPkg/Arria10SoCPkg/Arria10SoCPkg.dsc file.
  2. Change the PLATFORM NAME below to your custom board name.
    Figure 109. Editing the PLATFORM NAME in the Arria10soCPkg.dsc File
  3. Configure the gAlteraSoCFpgaTokenSpaceGuid.PcdIsAlteraSoCFPGADevelopmentBoards value from 1 to 0.

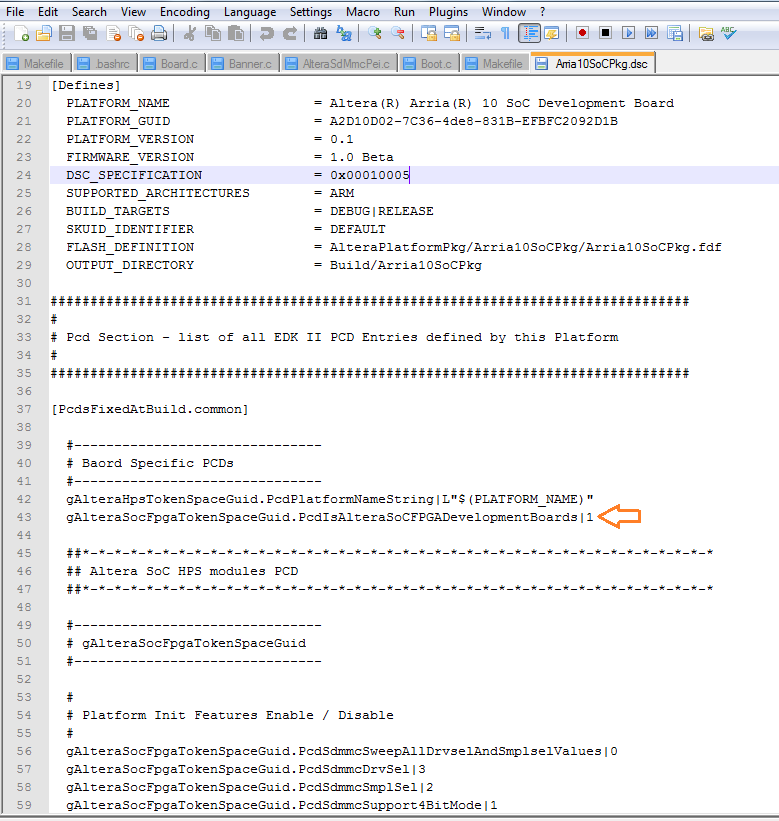

    Figure 110. Modifying the Board Specific PCD Value
