ALTDQ_DQS2 IP Core User Guide

Side Write Operation

The side write operation begins between 9.185 ms and 9.255 ms. The data written out from the DQS driver is also stored in check_fifo.

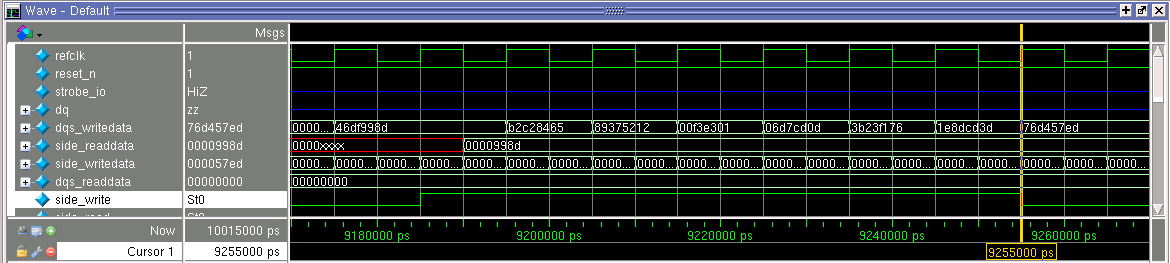

The following figure shows the waveform for the side write operation.

Side Write Operation Waveform


Note: The incoming data at dq is edge-aligned to the strobe_io.
