Side Write Operation

The side write operation begins between 19.011 ms and 19.067 ms. The data written out from the DQS driver is also stored in check_fifo.

The following figure shows the waveform for the side write operation.

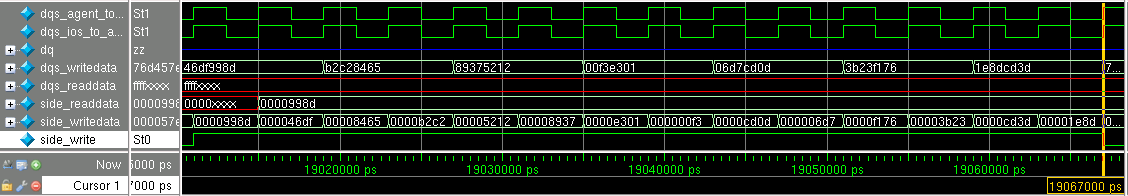

Side Write Operation Waveform


Note: The incoming data at dq is edge-aligned to the dqs_agent_to_ios.
