Instantiating the ALTDLL IP Core

To instantiate the ALTDLL IP core, follow these steps:

  1. In the IP Catalog (Tools > IP Catalog), locate and double-click the name of the IP core to customize. The parameter editor appears.
  2. Specify a top-level name for your custom IP variation. This name identifies the IP core variation files in your project. If prompted, also specify the target Altera device family and output file HDL preference. Click OK.
  3. On the Parameter Settings tab, on the General page, specify the parameters as shown in the following figure.

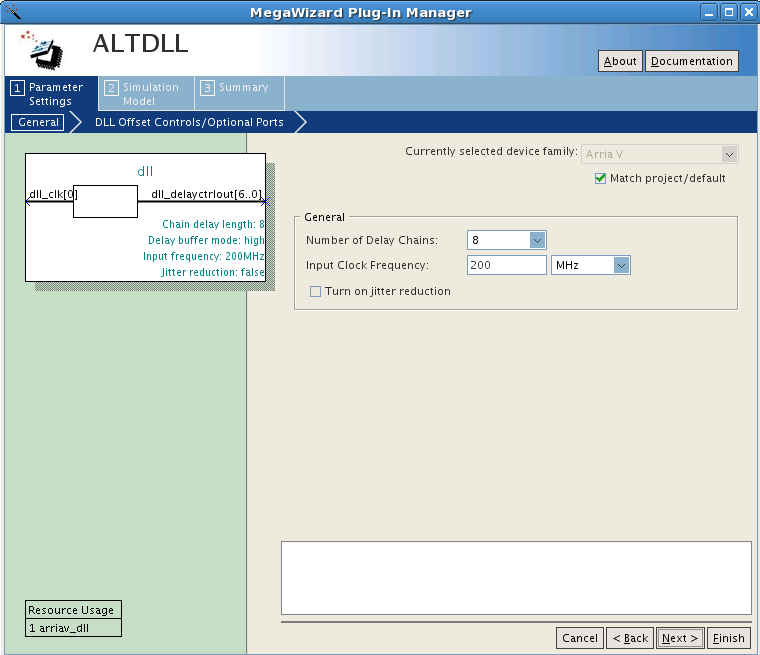

    Figure 28. ALTDLL Parameter Settings


  4. Click Finish.
