7.5.9.3.1. peripheral_subsystem_sys_clk_timer
The timer_definition.tcl script is located in the bsp/timer_hal directory. The script defines the timers as follows:
set_setting hal.sys_clk_timer peripheral_subsystem_sys_clk_timer set_setting hal.timestamp_timer none
This script is essential for the clocks definitions. The software driver hal.sys_clk_timer must be driven by the hardware clock named peripheral_subsystem_sys_clk_timer. Connecting hal.sys_clk_timer to any other hardware timer results in a compilation error. The following exercise demonstrates this point.
- Delete or rename the Makefile in the app/tcm_isr folder. Then delete or rename public.mk from the bsp/timer_hal folder.
- Open the timer_definition.tcl file and change peripheral_subsystem_sys_clk_timer to peripheral_subsystem_high_res_timer as follows:
set_setting hal.sys_clk_timer peripheral_subsystem_high_res_timer set_setting hal.timestamp_timer none
- Save timer_definition.tcl.
- Return to your shell and recreate the application by typing:
./create-this-app
- The figure below shows the error. Setting hal.sys_clk_timer to any other timers except for peripheral_subsystem_sys_clk_timer results in the same error message.

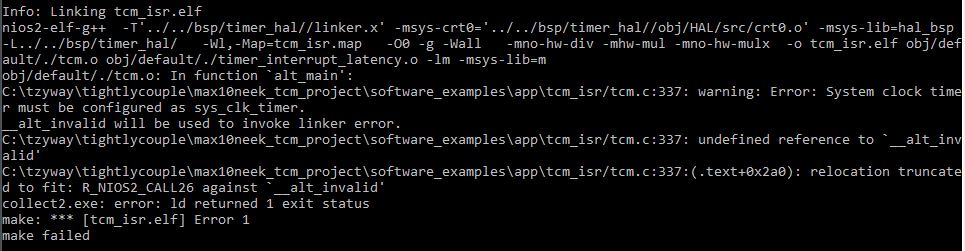

Figure 286. Error Message after Changing the hal.sys_clk_timer
