3.2. The System Info Tab

The System Info tab shows the board’s current configuration. The tab displays the JTAG chain, the board’s MAC address, the Qsys memory map, and other details stored on the board.

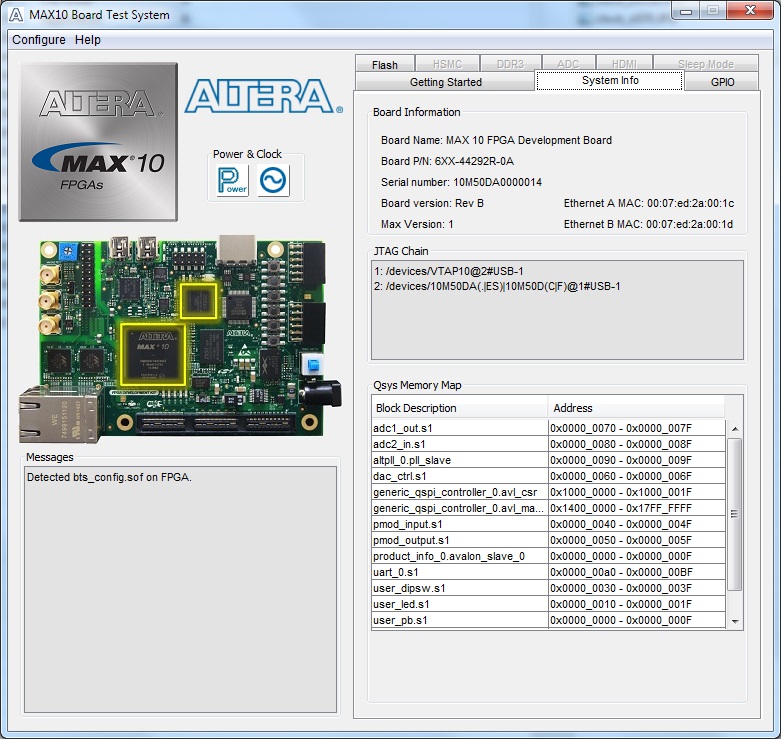

Figure 7. The System Info Tab
Table 3.  Controls on the System Info Tab
Controls Description
Board Information Controls The board information is updated once the GPIO design is configured. Otherwise, this control displays the default static information about your board.
Board Name Indicates the official name of the board, given by the Board Test System.
Board P/N Indicates the part number of the board.
Serial Number Indicates the serial number of the board.
Factory Test Version Indicates the version of the Board Test System currently running on the board.
MAX Version Indicates the version of MAX® code currently running on the board.
Ethernet A MAC Indicates the Ethernet A MAC address of the board.
Ethernet B MAC Indicates the Ethernet B MAC address of the board.
JTAG Chain Shows all the devices currently in the JTAG chain.
Qsys Memory Map Shows the memory map of the Platform Designer (Standard) system on your board.
