3.3. The GPIO Tab

The GPIO tab allows you to interact with all the general purpose user I/O components on your board. You can read DIP switch settings, turn LEDs on or off, and detect push button presses.

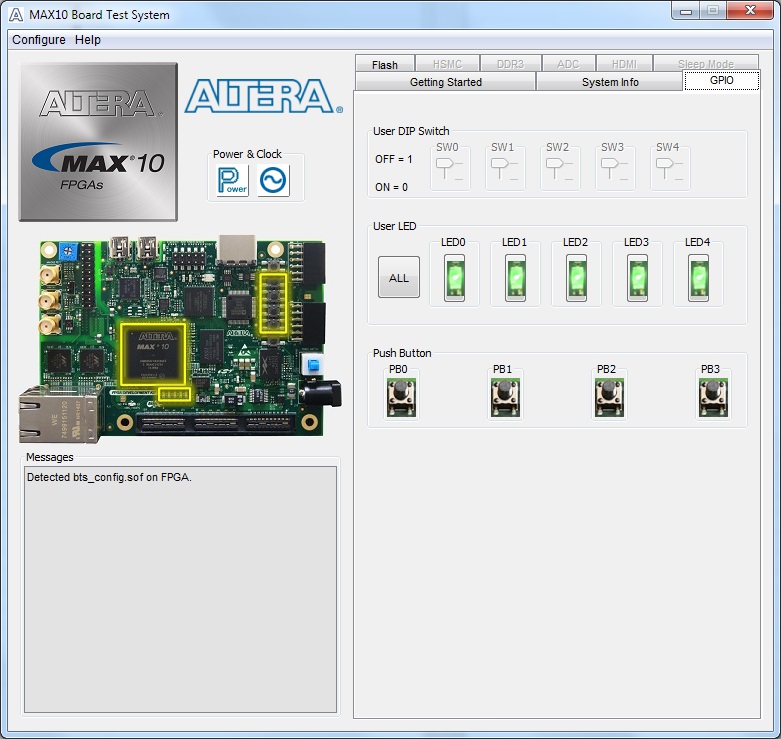

Figure 8. The GPIO Tab
Table 4.  Controls on the GPIO Tab
Control Description
User DIP Switch Displays the current positions of the switches in the user DIP switch banks. Change the switches on the board to see the graphical display change accordingly.
User LED Displays the current state of the user LEDs for the FPGA. To toggle the board LEDs, click the 0 to 4 buttons to toggle red or green LEDs, or click the All button.
Push Button Read-only control displays the current state of the board user push buttons. Press a push button on the board to see the graphical display change accordingly.
