11.5.4.6. Pin Delay Settings Tab

The Pin Delay Settings tab lets you view and change delay values on specific pins.

You can select the Pin Type, Pin ID, Rank, and Direction values of any delay that you are interested in, and the toolkit displays the delay value in the Delay Setting (taps) field.

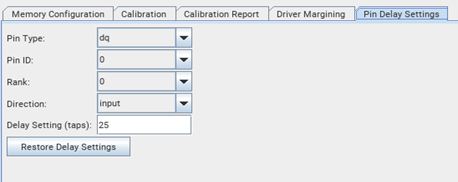

Figure 81. Pin Delay Settings Tab
