11.7.4.2. Rerunning the Test Engine

You can use the debug toolkit to rerun the test engine.

To rerun the test engine, follow these steps:

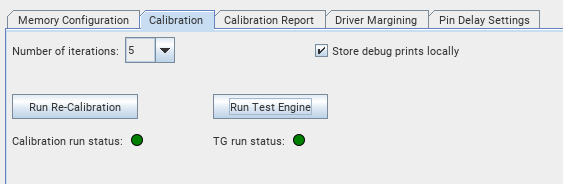

  1. Select the desired number of iterations that you want to rerun the test engine from the Number of Iterations pulldown menu.
  2. Click Run Test Engine to rerun the traffic generator with each iteration.

    The system reports the traffic generator run status for all the iterations. A green dot indicates that the traffic generator passed for all the iterations, while a red dot indicates that the traffic generator failed in at least one iteration.
