11.7.2. Configuring Your Design to Use the EMIF Debug Toolkit

To configure your design for use with the toolkit, you must generate a design example with the debug toolkit.

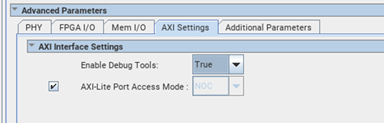

  1. Navigate to the AXI Settings tab in the Advanced Parameters section of the EMIF IP parameter editor.
  2. Set Enable Debug Tools to True.

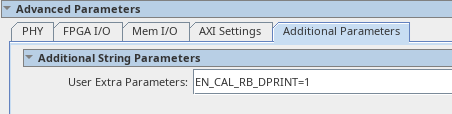

  3. If you want to save the Debug Print to a text file when using the debug toolkit, type EN_CAL_RB_DPRINT=1 in the User Extra Parameters field on the Additional Parameters tab.
  4. After you have fully parameterized the interface, click Generate Example Design. The system generates a design example with the debug toolkit enabled and all necessary components connected, as required for a single interface.
