1.3.3.2. Optimizing the Decap Count
Since the tool is a code-based spreadsheet, it keeps adding up the number of decoupling capacitors until ZPDN satisfies ZTARGET up to FEFFECTIVE. The PDN tool has a 301ea maximum decap count.
- Change the Decoupling mode from Auto to Manual.
There can be a ±5% variation on ZEFF impedance when doing decoupling caps optimization. This impedance variation can relate to fabrication tolerance.
Figure 35. Manual Decoupling Results Summary - Pre-Optimization - Observing the impedance plot carefully, optimize the number of each capacitor.

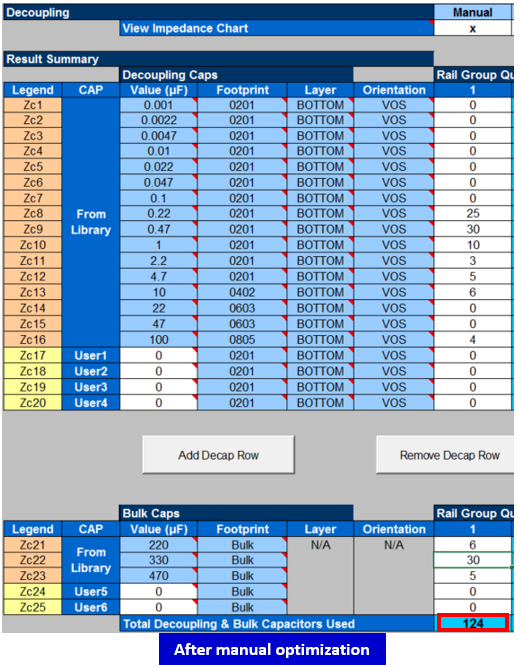

Figure 36. Manual Decoupling Results Summary - Post-Optimization, Round 1After optimizing manually, 301ea decaps are dramatically reduced to 124ea while maintaining a similar ZPDN profile (the red curve) under the same ZTARGET.Figure 37. Manual Decoupling Results Summary - Post-Optimization Results, Round 1A small amount of violation at different frequencies can reduce the number of decaps. Before and after results are shown below.
