Metrics Distribution Over Call Stacks

When interpreting the performance analysis results, you can select an object in the grid and select a performance metric in the drop-down menu of the Call Stack pane to:

  • View stacks leading to the selected object

  • Analyze the distribution of the selected performance metric per stacks of the selected object. For example, if the CPU Time metric is selected, the contribution bar shows a share of CPU time spent executing the selected stack relative to the total CPU time spent executing the selected function.

You can also select an object in the Timeline pane. In this case, the Call Stack pane displays metric data for all objects with the same stacks.

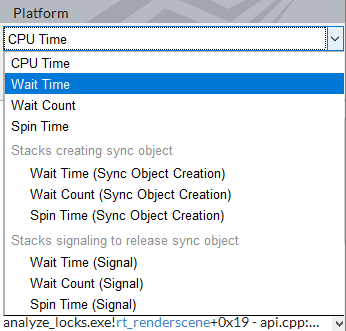

Depending on your analysis configuration, the following metrics are available:

Use This Metric

To Analyze This

CPU Time

Time during which the CPU is actively executing your application on all cores.

Overhead and Spin Time

Combined Overhead and Spin time calculated as CPU Time where call site type is Overhead + CPU Time where call site type is Synchronization.

Wait Time

Distribution of time when one thread is waiting for a signal from another thread. For example, a thread that needs a lock that is currently held by another thread, is waiting for the other thread to release the lock.

Wait Count

Distribution of the number of times the corresponding system wait API was called.

Spin Time

Distribution of Wait Time during which the CPU was busy.

Task Time (Task)

Time spent within a task.

Context Switch Time

Distribution of software thread inactive time due to a context switch, regardless of its reason (Preemption or Synchronization), over different call stacks.

Context Switch Count

Distribution of the amount of context switches, regardless of their reason (Preemption or Synchronization), over different call stacks.

Preemption Context Switch Count

Distribution of the amount of context switches where the operating system task scheduler switched a thread off a processor to run another, higher-priority thread.

Synchronization Context Switch Count

Distribution of the amount of context switches where a thread was switched off because of making an explicit call to thread synchronization API or to I/O API.

Inactive Time

Distribution of time during which a thread remained preempted from execution.

Event metric such as Instructions Retired, Clockticks, LLC Miss, and others

Distribution of a hardware event. Use this metric to identify stacks with the highest contribution of the event count into the total event count collected for the target.

Wait Time (Signal)

Distribution of Wait Time by call stacks of a signaling thread that was releasing a lock where the thread was waiting. Use this metric to identify signaling stacks resulted in long waits to optimize algorithms of the signaling thread.

Wait Count (Signal)

Distribution of Wait Count by call stacks of a signaling thread that was releasing a lock where the thread was waiting. Use this metric to identify signaling stacks resulted in the high number of waits.

Spin Time (Signal)

Distribution of Spin Time by call stacks of a signaling thread that was releasing a lock where the thread was waiting. Use this metric to identify signaling stacks resulted in long waits while the CPU is busy.

Wait Time (Sync Object Creation)

Distribution of Wait Time by various object creations. For example, the currently selected row in the grid may contain wait operations on various objects created in different places of the program.

Wait Count (Sync Object Creation)

Distribution of Wait Count by various object creations.

Spin Time (Sync Object Creation)

Distribution of Spin Time by various object creations.

Loads (Memory Allocation)

Distribution of the total number of loads in the stacks allocating memory objects.

Execution (Computing Task (GPU))

Distribution of time spent in the stacks to execute computing tasks. Use this metric to identify most expensive operations for Offload.

Host-to-Device Transfer (Computing Task (GPU))

Distribution of time spent in the stacks to transfer data from host to device. Use this metric to identify most expensive operations for Offload.

Device-to-Host Transfer (Computing Task (GPU))

Distribution of time spent in the stacks to transfer data from device to host. Use this metric to identify most expensive operations for Offload.

NOTE:

If a selected stack type is not applicable to a selected program unit, VTune Profiler uses the first applicable stack type from the stack type list instead.
