Context Menus: Call Stack Pane

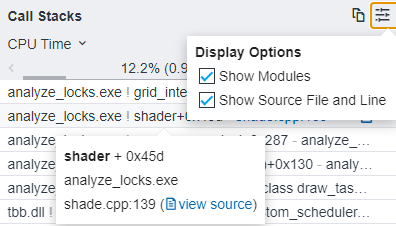

Use the available controls to address a number of options:

Use This

To Do This

View Source hyperlink

Open the Source/Assembly window for the program unit in the selected stack.

Show Modules toggle

Display the module names of the program units selected in the Call Stack pane.

Show Source File and Line toggle

Display the source file names of the program units selected in the Call Stack pane and a line number where the call was made.

Stack Selector

Switch between available stacks using the left/right arrows.

Copy to Clipboard button

Copy the data into the clipboard buffer to paste it to a different location.

Stack Type drop-down menu

Select a metric to arrange the stack by.

Parent topic: User Interface Reference
