A.2.4.2.2. Event Counter

This tab allows you to read the error events like the number of receiver errors, framing errors, and others, for each port. You can use the Clear P0 counter to reset the error counter.

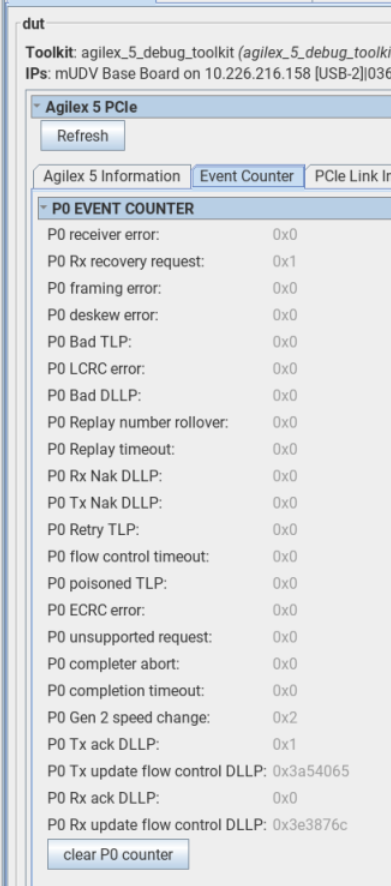

Figure 76. Example of Agilex™ 5 Event Counter Tab
Note: P# PCIe* 2.0 speed change, TX ack DLLP, RX ack DLLP, TX update flow control DLLP, and RX update flow control DLLP value would be corrupted when there is a reset such as SBR/Link Disable.
