8.2.5.4. Parameterizing the External Memory Interfaces Calibration IP

The EMIF Calibration IP tab lets you select the type of debug interface that you want, and whether to skip calibration or perform a full calibration while simulating your design.

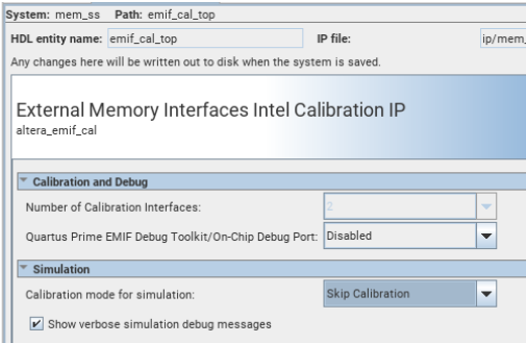

Figure 78. EMIF Calibration IP Tab
