4. Memory Subsystem Features

Before configuring each IP within the memory subsystem, you must parametrize the high-level topology in the IP parameter editor, then click Generate IPs within Memory Subsystem, and finally click Dive into Packaged Subsystem.

The Platform Designer window then appears, where you can configure the features of each IP.

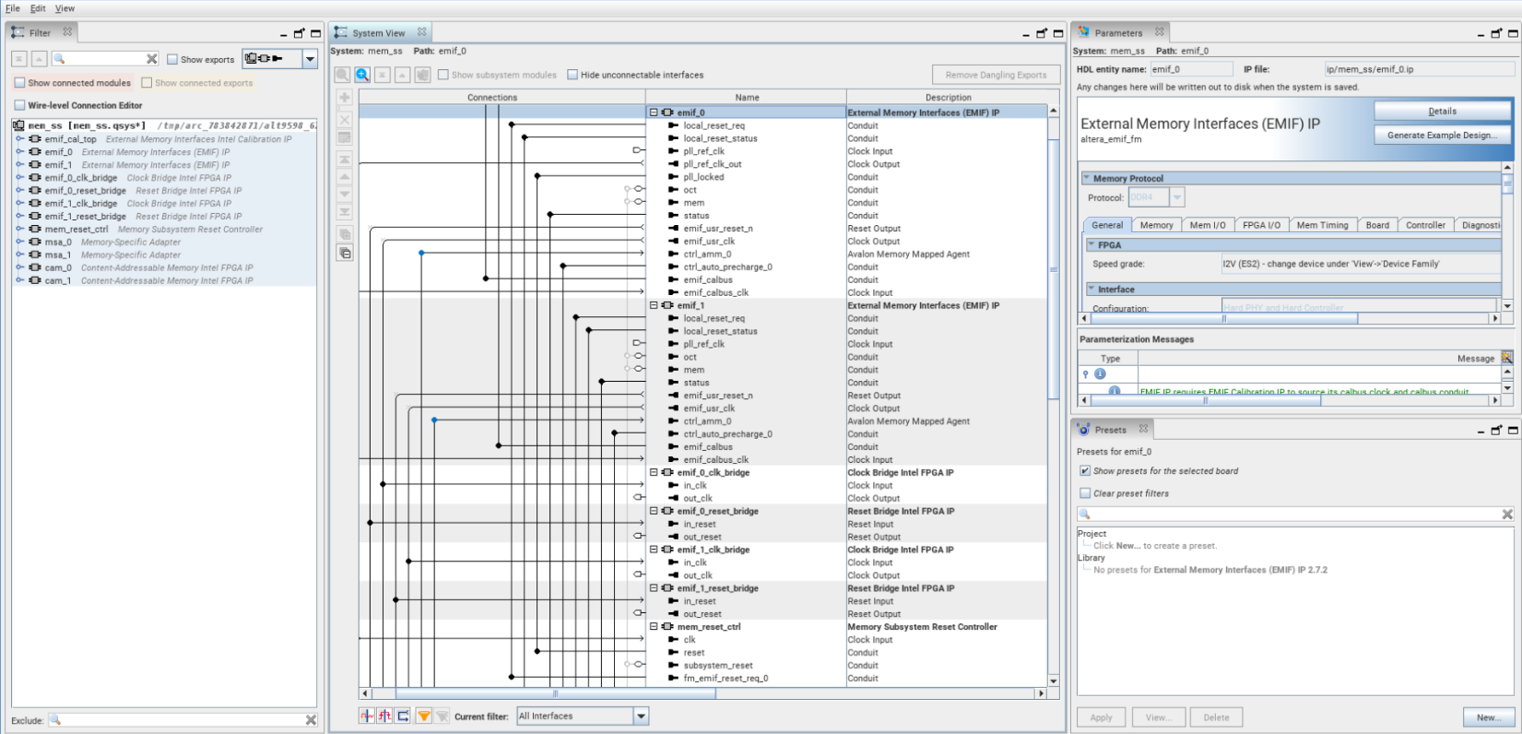

The following figure shows the Platform Designer window. Use the embedded parameter editor when selecting the desired IPs to parameterize.

Figure 15. Memory Subsystem Platform Designer Window

For more information on IP parametrization, refer to Parameterizing the Memory Subsystem IP.

The following topics describe the configurable features for the memory-specific adaptor, external memory interface, and lookup IPs.


Section Content
Memory-Specific Adaptor
External Memory Interface
Lookup IPs
