6.4.8. MBL Lookup Using Handle Operation

This operation initiates a key search within a logical table, using its handle

To perform a search using handle operation, follow these steps through AXI Lite interface:

  1. Write the handle to the MBL_KEY_HANDLE register.
  2. Poll the MBL_MGMT_CTRL register until the busy bit = 0x0.
  3. Write to the MBL_MGMT_CTRL register:
    • Specifying req_type = 0x7.
    • Specifying tab (logical table).
  4. Check MBL_MGMT_CTRL register success bit, success bit is set to 0x1 to indicate the search operation is handled successfully.
  5. Check MBL_RES registers for lookup results.
  6. Check MBL_KEY registers are written with the associated key.

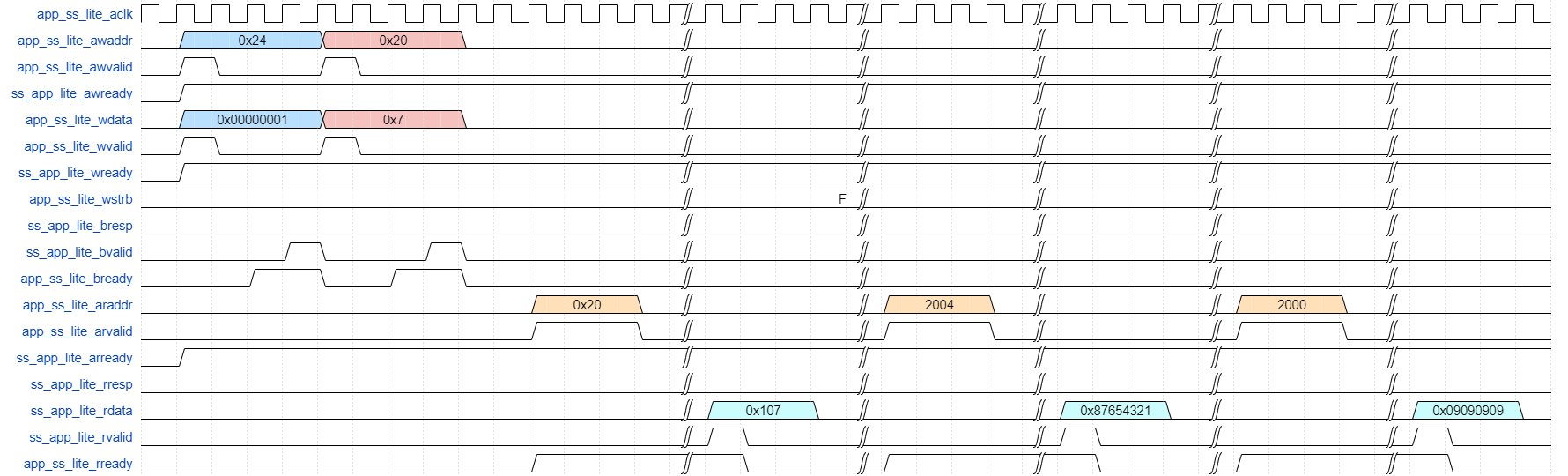

Figure 57. Lookup Using Handle Operation on MBL
  • The address of mbl_mgmt_ctrl register is 0x20.
  • The address of mbl_key_handle is 0x24.
  • The address of mbl_key register is 0x1000.
  • The address of mbl_res register is 0x2000.
