4.3.1. Configure Menu

Use the Configure menu to select the design you want to use. Each design example tests different board features. Select a design from this menu and the corresponding tabs become active for testing.

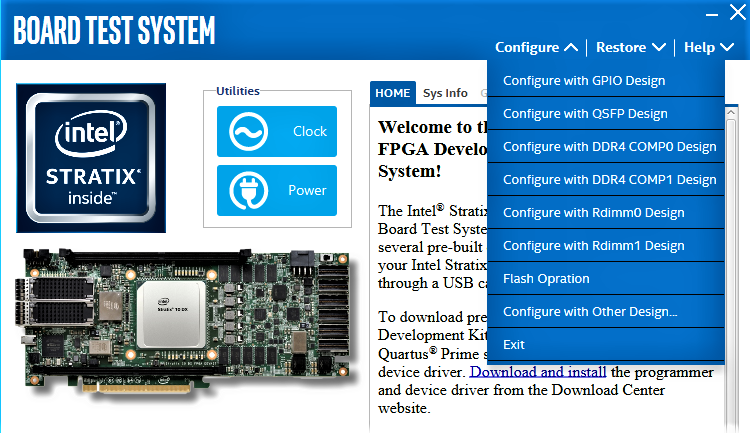

Figure 7. Configure Menu
To configure the FPGA with a test system design, perform the following steps:
  1. On the Configure menu, click the configure command that corresponds to the functionality you want to test.
  2. In the dialog box that appears, click Configure to download the corresponding design to the FPGA.
When configuration finishes, close the Intel® Quartus® Prime software GUI if it's already open. The design begins running in the FPGA. The corresponding GUI application tabs that interface with the design are now enabled.
Note: If you use the Intel® Quartus® Prime Programmer for configuration rather than the BTS GUI, you may need to restart the GUI.
