4. Board Test System (BTS)

The Intel® Stratix® 10 DX FPGA Development Kit includes an application called Board Test System (BTS) to test the functionality of this board. The BTS provides an easy-to-use Graphical User Interface (GUI) to alter functional settings and observe results. You can use the BTS to test board components, modify functional parameters, observe performance, and measure power usage.

The BTS communicates over the JTAG bus to a test design running in the Intel® Stratix® 10 DX FPGA device. You can use the BTS to reconfigure the FPGA with test designs specific to the functionality that you are testing.

The BTS is also useful as a reference for designing systems.

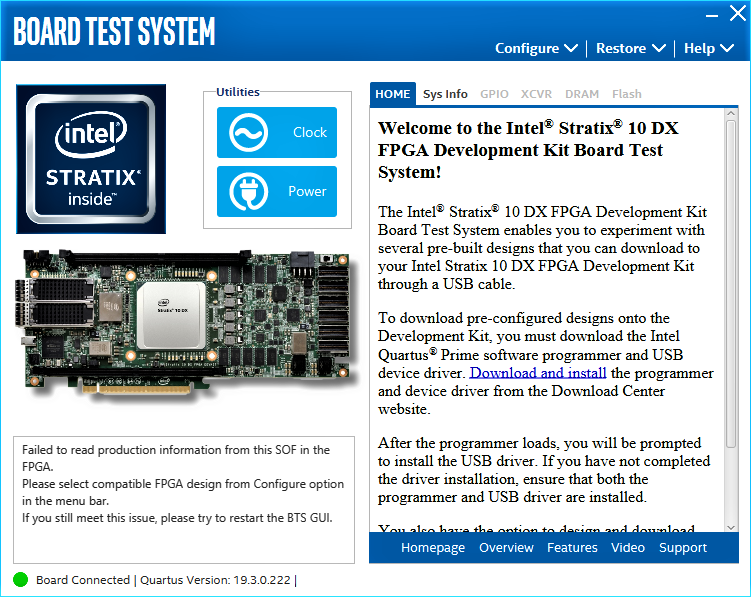

Figure 5. BTS GUI Home

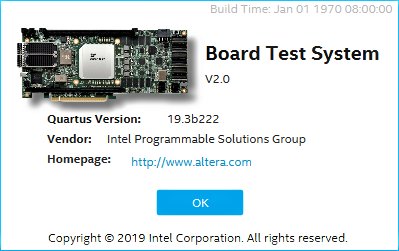

Figure 6. About BTS

Section Content
Preparing the Development Kit
Running the Board Test System
Using the Board Test System
Smart VID Setting
