4. Board Test System

The Agilex™ 7 FPGA I-Series Development Kit includes design examples and the board test system (BTS) GUI to test the functionality of this board. The BTS provides an easy-to-use interface to alter functional settings and observe results. You can use the BTS to test board components, modify functional parameters, observe performance, and measure power usage.

While using the BTS, you reconfigure the FPGA several times with test designs specific to the functionality that you are testing. The BTS is also useful as a reference for designing systems. The BTS communicates over the JTAG bus to a test design running in the Agilex™ 7 FPGA I-Series device.

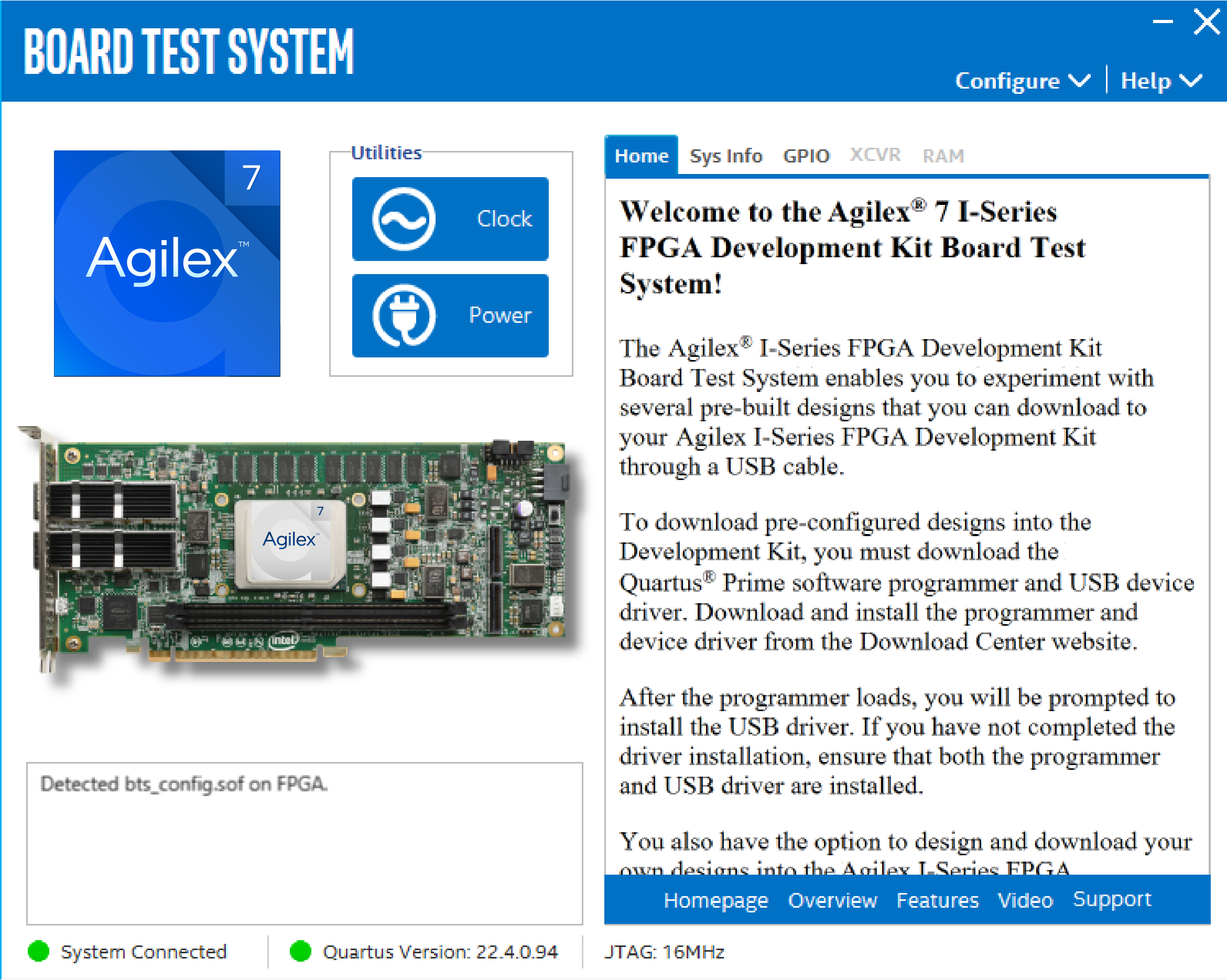

The figures below show the graphical user interface (GUI) of a board that is in factory configuration.

Figure 13. BTS GUI (Power Solution 2)This diagram applies to DK-DEV-AGI027RBES and DK-DEV-AGI027-RA.
Figure 14. BTS GUI (Power Solution 1)This diagram applies to DK-DEV-AGI027RES and DK-DEV-AGI027R1BES.

Section Content
Set Up BTS GUI Running Environment
Test the Functionality of the Development Kit
Control On-board Clock through Clock Controller GUI
Monitor On-board Power through Power Monitor GUI
BTS Test Areas
Identify Test Pass or Fail-based on BTS GUI Test Status
